125KHz RFID EM Read Module

125KHz RFID ASK Read Module125KHz RFID ASK Read Module125KHz RFID ASK Read Module125KHz RFID ASK Read Module125KHz RFID ASK Read Module125KHz RFID ASK Read Module125KHz RFID ASK Read Module

Model number： PIEM

Inquiry
Quantity
    Share

    Introduction

    • The 125KHz contactless card Read module is completely Integrated Protocol Handling for ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 or compatible.
    • They come with the choice of internal antenna or external antenna and are suitable and for embedded applications and general Electronic Devices. OEM/ODM service is available.

    Features

    • Support multi-type of cards and protocol: ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 or compatible.
    • Communications: Wiegand 26/34(Optional) bits, ASCII, ABA
    • Built-in LED & Buzzer alert.
    • Provide SDK for development.

    Specification

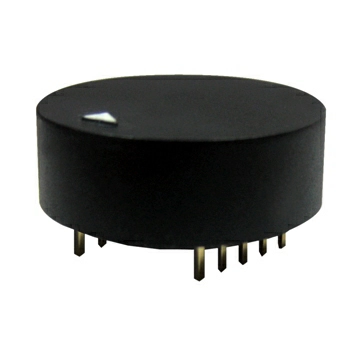

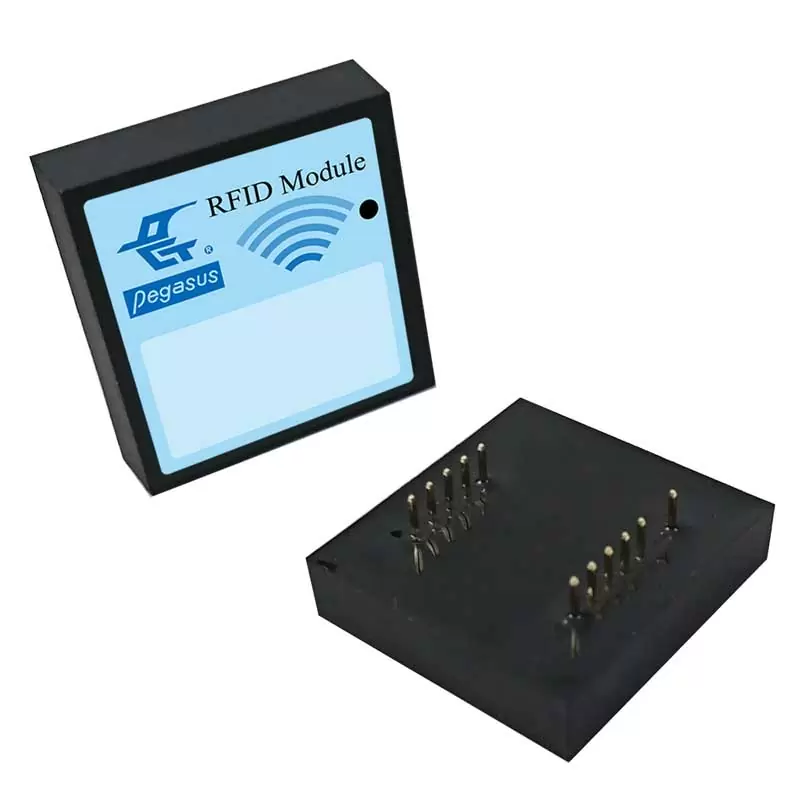

    Appearance125KHz RFID ASK Read Module125KHz RFID ASK Read Module125KHz RFID ASK Read Module125KHz RFID ASK Read Module125KHz RFID ASK Read Module125KHz RFID ASK Read Module125KHz RFID ASK Read Module
    Model No.PIEM-AWAS-012APXEM-BWS-01PIEM-CWASPIEM-EWSPIEM-FWASPIEM-FWAS04PIEM-HWS-LW
    Micro Power
    Standby current: 11μA~18μA
    Frequency125KHz ASK
    CompatibilityEM4001, EM4100, EM4102, EM4200, EM4305, TEMIC 5557(ISO11785) , TK4100, T5567, ATA5577
    With internal antennaYESNOYESYESYESYESYES
    Reading rangeMax.13cmDepending on tag size, tag type and antenna size Max.16cmMax.6cmMax.10cmMax.7cmMax.3.5 cm
    Output formatWiegand 26/34(Optional) bits, ASCII, ABAWiegand 26/34(Optional) bits, ASCII, ABAWiegand 26/34(Optional) bits, ASCII, ABAWiegand 26/34(Optional) bits, ASCII, ABAWiegand 26/34(Optional) bits, ASCII, ABAWiegand 26/34(Optional) bits, ASCII, ABAWiegand 26/34 bits / ASCII
    Power VoltageDC 5.5V~18VDC 3.7V~5.4VDC 3.7V ~ 5.4VDC 3.7V ~ 5.4V
    DC 12V
    (Optional)    		DC 3.7V ~ 5.4V
    DC 12V
    (Optional)    		DC 3.7V ~ 5.4VDC 3.3V ~ 10V
    MaterialABS
    Dimensions (LxWxH)mm40.5 x 24 x 1127 x 17 x 740 x 40 x 1026(Diameter) x 926 x 25 x 726 x 25 x 732 x 32 x 8

    Application field

    RFID Module-Counterfeit ForestallingRFID Module-Asset ManagementRFID Module-Contactless payment system
    Counterfeit ForestallingAsset ManagementContactless payment system
    RFID Module-HealthcareRFID Module-Entertainment FacilitiesRFID Module-Access Control /Intercom
    HealthcareEntertainment FacilitiesAccess Control /Intercom
    RFID Module-Automobile instrument controlRFID Module-Logistics & Supply chainRFID Module-Production control
    Automobile instrument controlLogistics & Supply chainProduction control
    RFID Module-Robotics NavigationRFID Module-Kiosk / POS systemRFID Module-Rental Equipment Solution
    Robotics NavigationKiosk / POS systemRental Equipment Solution
