1300Lb,600Kgs Weather Proof Electromagnetic Lock(Side Mount)
Features
- Holding force: 1300LBs (600KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install
- Suitable for security door (Out Swing)
- Waterproof IP rate for outdoor installation
Specification
| HOLDING FORCE | 1300LBs (600KGs) | |
|---|---|---|
| VOLTAGE /CURRENT | DC 12V(500mA) / DC 24V(250mA) | |
| DOOR MONITORING | YES | |
| LED INDICATOR | --- | |
| TIMER | --- | |
| RELAY DRY CONTACT RATING | 1A ,24VDC/AC | |
| MATERIAL | MAGNET | Stainless steel |
| ARMATURE | Steel | |
| DIMENSIONS(LXWXD)MM | MAGNET | 225x65x42 |
| MAGNET | 185x61x16 | |
| UNIT WEIGHT (KG) | 5kgs±1% | |
| INGRESS PROTECTION(IP) | YES | |
| BRACKET TYPE | L Bracket: PG-BLO600F L & Z Bracket: PG-BLZ600F | |

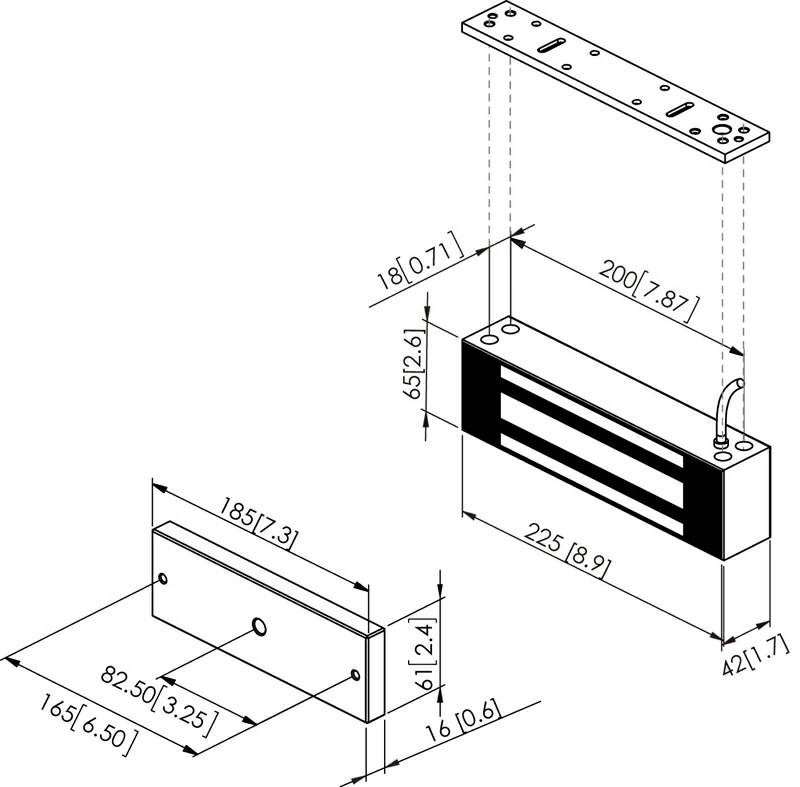

Dimensions: mm[inch]
Application
For aluminum steel or wooden door, brass door, glass door with frame
Accessories
L type fixed bracket PG-BLO600F![1300Lb,600Kgs Weather Proof Electromagnetic Lock(Side Mount)]( "1300Lb,600Kgs Weather Proof Electromagnetic Lock(Side Mount)")
L & Z type fixed bracket PG-BLZ600F![1300Lb,600Kgs Weather Proof Electromagnetic Lock(Side Mount)]( "1300Lb,600Kgs Weather Proof Electromagnetic Lock(Side Mount)")
![1300Lb,600Kgs Weather Proof Electromagnetic Lock(Side Mount)]( "1300Lb,600Kgs Weather Proof Electromagnetic Lock(Side Mount)")
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PGL-600F | 2024-11-11 | 1300Lb,600Kgs Weather Proof Electromagnetic Lock catalog |
