145LBs, 66KGs Mini Electromagnetic Lock

Mini Electromagnetic Locks PML-080AMini Electromagnetic Locks PML-080A

Model number： PML-080A

Inquiry
Quantity
    Share

    Features

    • Holding force: 100~145LBs (45~66KGs).
    • Voltage : 12V~24VDC (Selectable)
    • Compact size; Easy to install
    • Suitable for drawer, locker, mailbox, and other similar devices

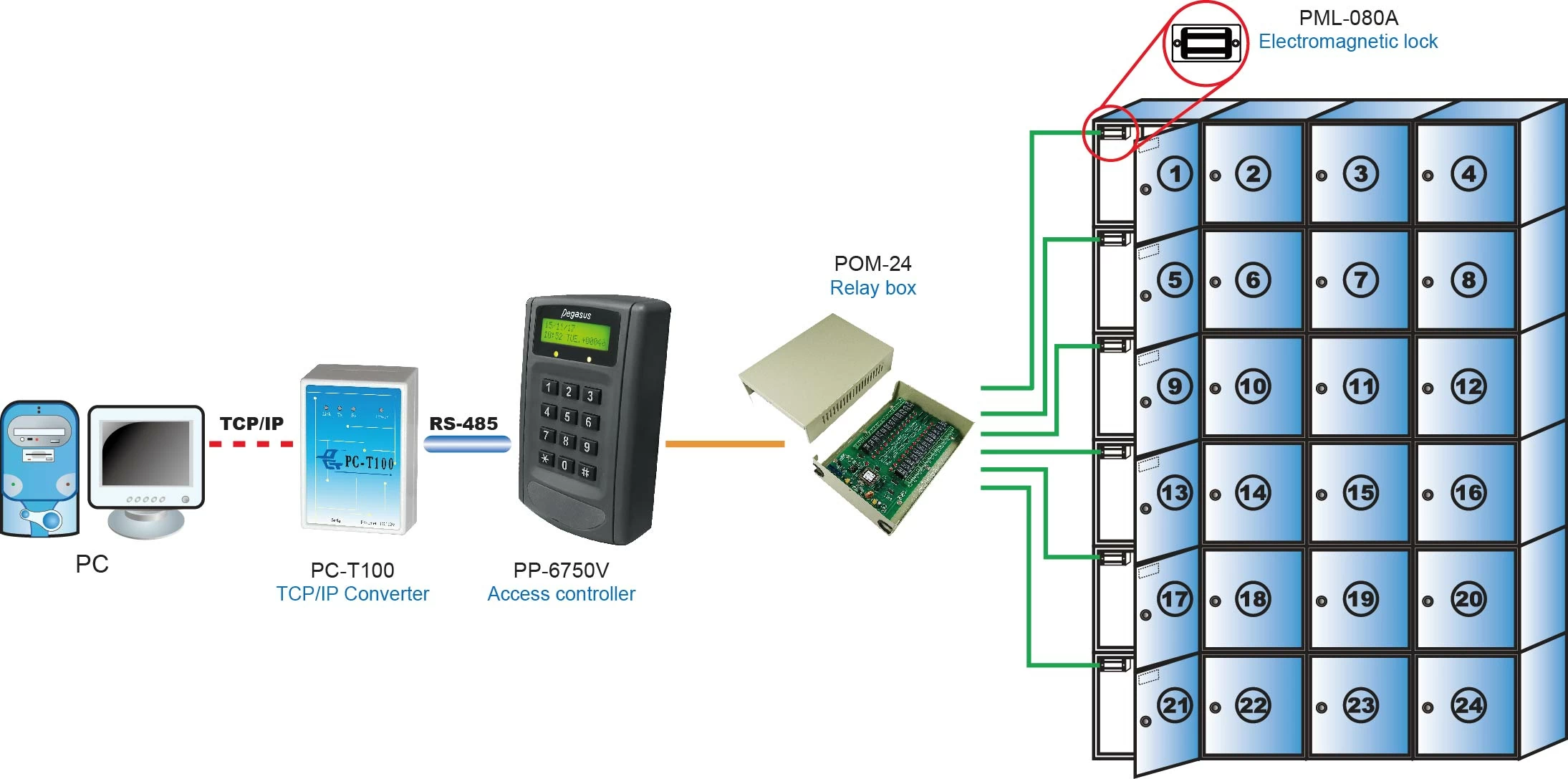

    System configuration

    /storage/system/electric_lock/EM_lock/PML-080A/System_configuration_for_PML-080A.webp

    /storage/system/electric_lock/EM_lock/PML-080A/PIC_for_mini_em_lock.webp

    Specification

    Holding Force100~145LBs (45~66KGs)
    Voltage /CurrentDC 12V(60mA)~DC 24V(150mA)
    Door monitoring---
    LED indicator---
    TIMER---
    Relay dry contact rating---
    MaterialMagnetAluminum alloy
    Armature plateSteel
    Dimensions(LxWxD)mmMagnet70x38x25
    Armature plate60x32x8
    Unit weight (kg)0.4kgs±1%
    Ingress Protection(IP) ---
    Bracket Type---

    Dimensions: mm[inch]

    /storage/system/electric_lock/EM_lock/PML-080A/Dimensions_for_PML-080A.webp

    Installation assembly

    Pull door type
    /storage/system/electric_lock/EM_lock/Installation-assembly-For-pull-door-type.webp

    Sliding door type
    /storage/system/electric_lock/EM_lock/Installation-assembly-For-sliding-door-type.webp

    We reserve the right to change the specification without prior notice or obligation!

    proimages/declaration-from-Pongee-Taiwan.jpg

    Download

    #NameUpload DateDescriptionDownload
    1
    PML-080A
    2024-11-11
    145LBs, 66KGs Mini Electromagnetic Lock catalog
      PML-080A
