Multi RFID Reader

Desktop type Multi RFID ReaderDesktop type Multi RFID Reader

Model number： PUA-310V

Inquiry
Quantity
    Share

    Features

    • Multi RFID reader & writer
    • Support 125KHz & 13.56MHz UID
    • 13.56MHz Writer
    • Desktop type
    Multi RFID Reader
    Multi RFID Reader

    Specifications

    Model No.PUA-310V-0/NPUA-310V-0/HPUA-310V-0/M0PUA-310V-0GPUA-310V-0NM0
    Frequency125KHz ASK125KHz FSK13.56MHz13.56MHz125KHz & 13.56MHz
    CompatibilityISO18000-2 EM4001, 4100, 4102, TEMIC 5567H.I.D.ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESfire, NFC(card simulation)Felica, Mifare, Mifare Ultralight, Mifare DESFire, NFC(card simulation), ISO14443B, ISO15693ISO18000-2 EM4001, 4100, 4102, TEMIC 5567, ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC(card simulation)
    Power VoltageDC 5V / 12V / 24V±10%, DC 7V~32V(Optional)
    Output Format/
    Interface    		Wiegand / ABA / UART / RS-232 / RS-485 / USB
    Device Driver Operating System Support*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10
    *Mac OS 8/9, OS X
    *Linux/Android
    *Windows 11(Optional)
    IP Rating IP54
    Dimesions(LXWXD)MM118x75x17

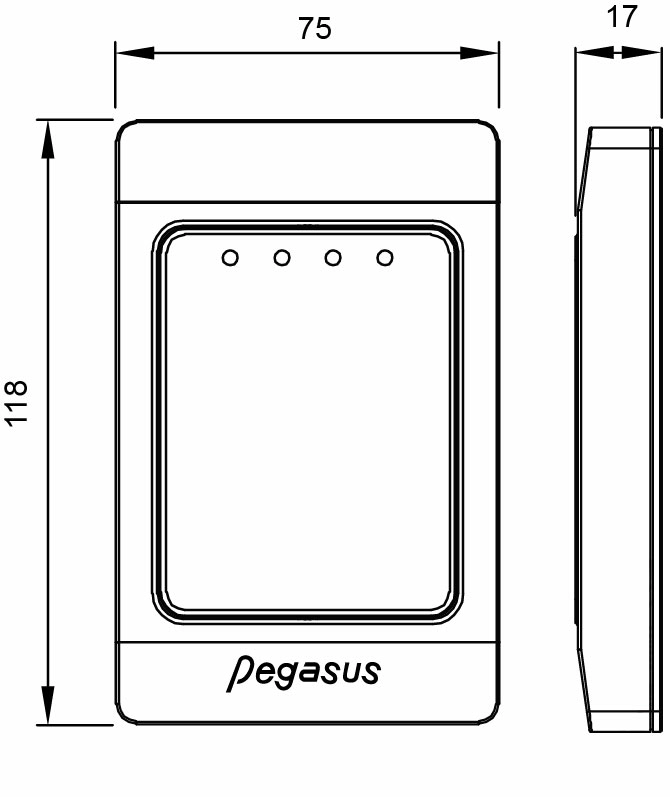

    Dimension: Unit(mm)

    Multi RFID Reader

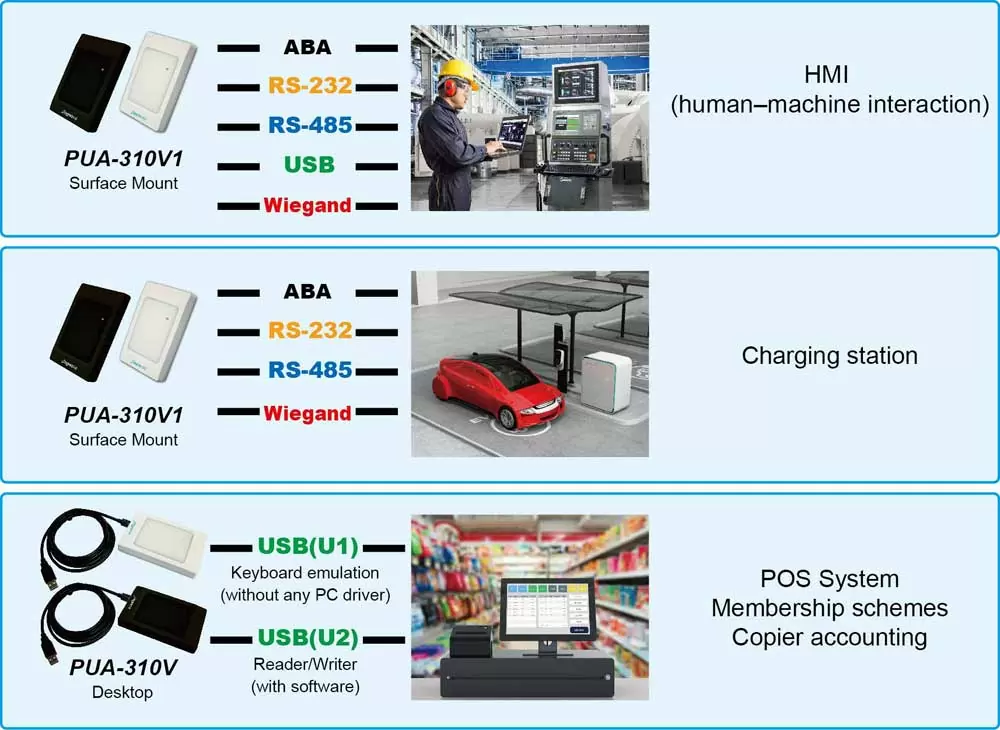

    Application field

    RFID Reader-Charging stationRFID Reader-HMI、PLCRFID Reader-Production controlRFID Reader-Vehicle rental system
    Charging stationHMI、PLCProduction controlVehicle rental system
    RFID Reader-Kiosk/POS SystemRFID Reader-Membership SystemRFID Reader-Library automation
    Kiosk/POS SystemMembership SystemLibrary automation

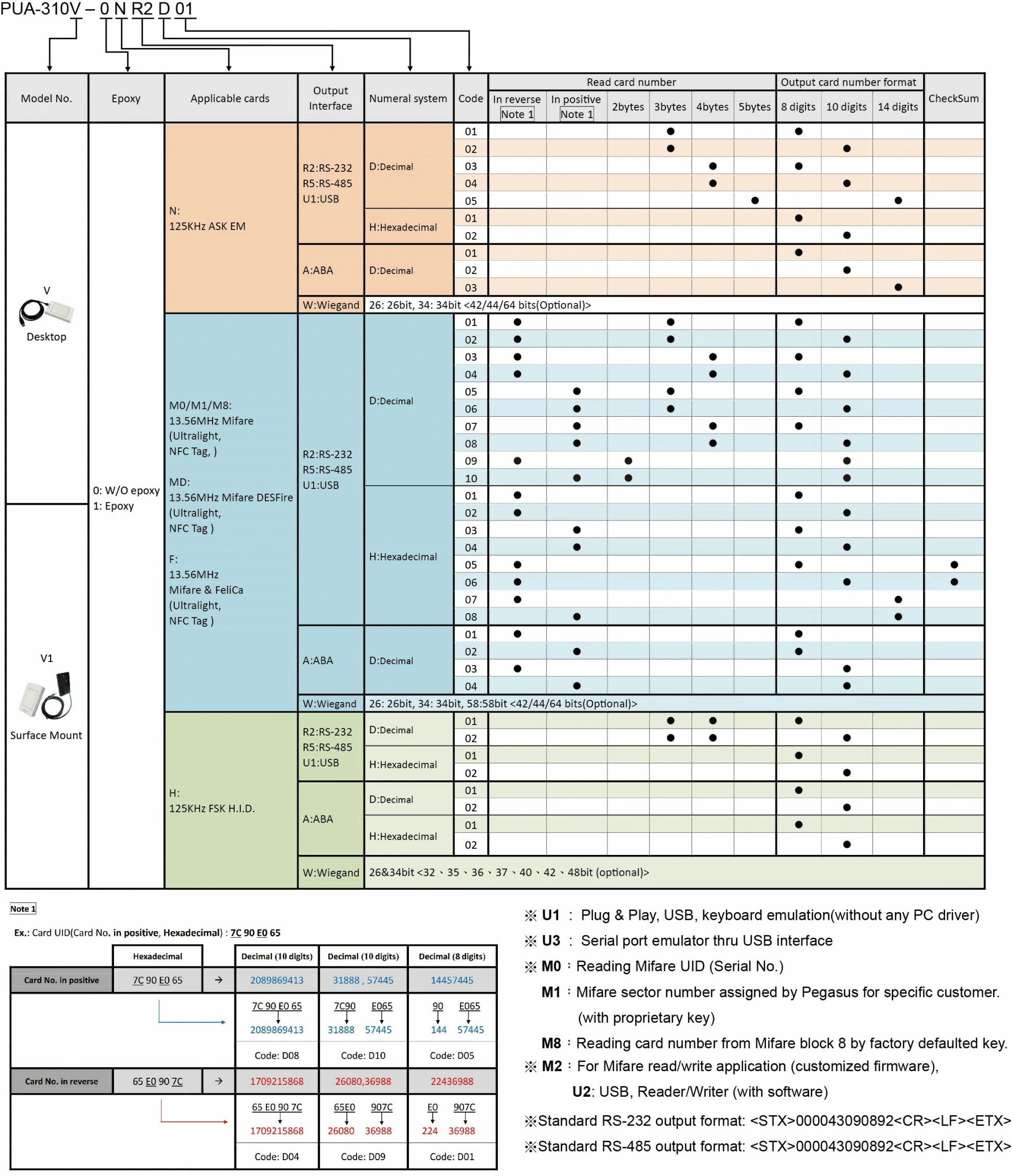

    Ordering information

    Multi RFID Reader
    Mifare is a registered trademark of NXP B.V.
    MIFARE DESFire is a registered trademark of NXP B.V.
    FeliCa is a trademark of Sony Corporation.


    We reserve the right to change the specification without prior notice or obligation!

    Download

    #NameUpload DateDescriptionDownload
    1
    PUA-310V
    2024-11-11
    Multi RFID Reader Catalog
      PUA-310V
