Electric Bolt Lock – Fail Safe

DA-64AD Electric Deadbolt Lock (Drop to hold position by magnetic)DA-64AD Electric Deadbolt Lock (Drop to hold positionDA-64AD Electric Deadbolt ManufacturersDA-64AD Electric Deadbolt SuppliersDA-64AD Electric DeadboltDA-64AD Electric Deadbolt

Model number： DA-64AD

Selection Guides For Electric Drop bolt
Inquiry
Quantity
    Share

    Features

    • Door position status monitor output contact
    • Adjustable door lock delay timer
    • For emergency door, glass door and frameless glass door. Wooden door

    Specification

    Model No.DA-64A/DDA-64ADV
    TypeFail safe
    Voltage / CurrentDC11~16V(Standby:110~90mA , Working:1000~900mA)DC12~24V(Standby:100~50mA , Working:800~500mA)
    Time Delay8 Sec. / 7 Sec. / 3 Sec.
    LED indicatorYES
    Door position sensorYES
    Dimension (LxWxD)mmFaceplate204x33x3
    Lock132x30x42
    Net Weight (g)687g±1%
    BracketSurface Mount Bracket: PG-B64
    Glass Door U-Bracket: PG-DASTC-2

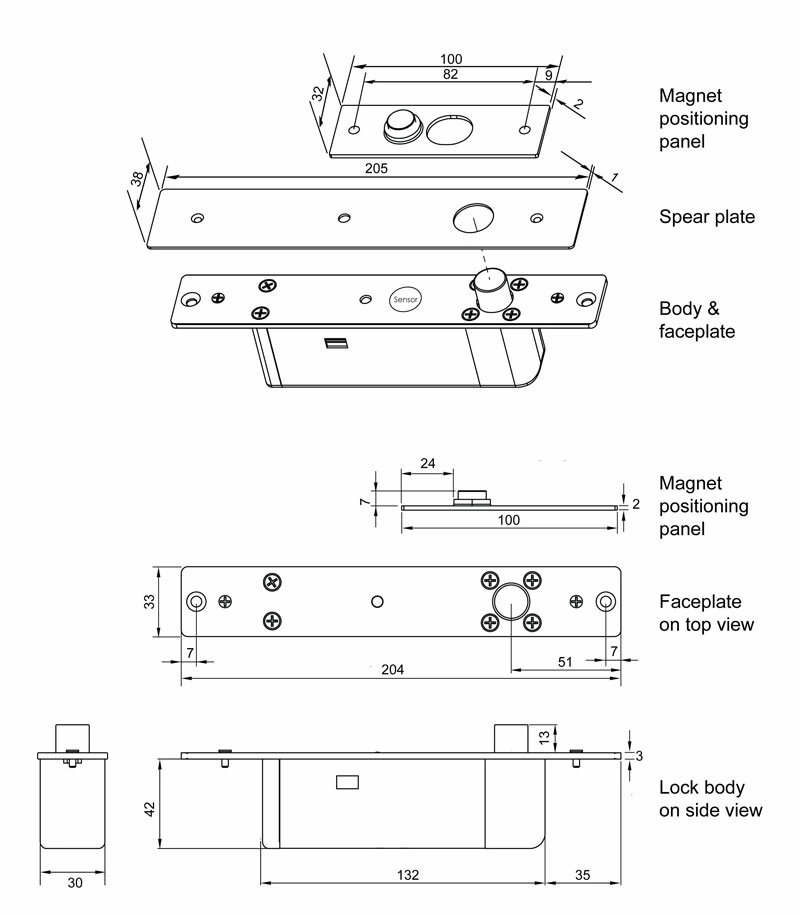

    Dimension: Unit(mm)

    /storage/system/electric_lock/Dimension-for-DA-64E.webp

    Accessories

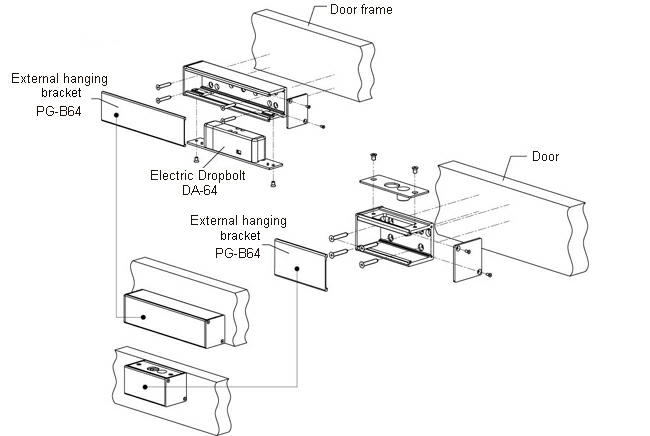

    External hanging bracket - PG-B64
     /storage/system/electric_lock/bracket/PG-B64.webp/storage/system/electric_lock/bracket/PG-B64.-installationjpgE.webp

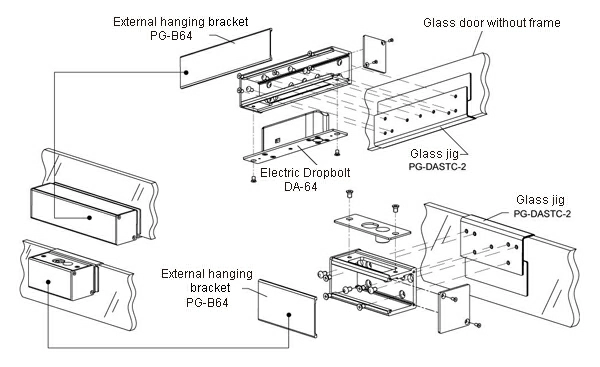

    For glass door without frame

    External hanging bracket - PG-B64 + Glass jig - PG-DASTC-2

    /storage/system/electric_lock/bracket/PG-B64.webp/storage/system/electric_lock/bracket/PG-DASTC-2.webp  /storage/system/electric_lock/bracket/PG-B64-installationjpg-3E.webp

    Ordering information

    DA-64A/DFail safe type electric deadbolt, DC11V~16V
    DA-64ADVFail safe type electric deadbolt, DC12~24V
    DA-64AD2Fail safe type electric deadbolt, DC11V~16V, with COM. & N.O. & N.C. & Door monitor

    We reserve the right to change the specification without prior notice or obligation!

    proimages/declaration-from-Pongee-Taiwan.jpg

    Download

    #NameUpload DateDescriptionDownload
    1
    DA-64AD
    2024-11-11
    Electric Bolt Lock – Fail Safe catalog
      DA-64AD
