Fingerprint access controller
Features
- Fingerprint proximity reader support 3000 fingerprint capacity
- Support 125KHz & 13.56MHz
- PC base or standalone
- Possible in 8 digits ID for time attendance recording.
- With complete door release, held monitoring and intruded alarm period and error trials
Specification
| Model No. | PFP-3702VXN | PFP-3702VXM0 | |
|---|---|---|---|
| Frequency | 125KHz | 13.56MHz | |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) | |
| User Capacity | 32,000 card capacity, 32,000 events | ||
| Battery | --- | ||
| USB disk | --- | ||
| Power Voltage | DC 12V | ||
| Interface | RS-232 / RS-485/ TCP/IP(Optional) | ||
| Wiegand input | Wiegand (26/34 bits) | ||
| Input | Exit push button / Door monitor / Security sensor | ||
| Output | Alarm output / Tamper switch output / Electric lock output | ||
| Keypad | YES | ||
| Material | ABS | ||
| Dimensions (LxWxH)mm | 174x100x45 | ||
| IP Rating | IP54 | ||

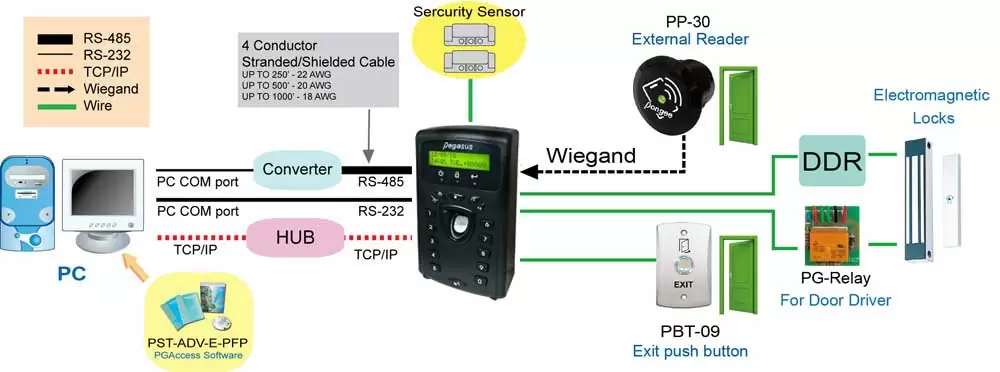

System configuration
Dimension: mm
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PFP-3702V | 2024-11-11 | Fingerprint access controller catalog |
