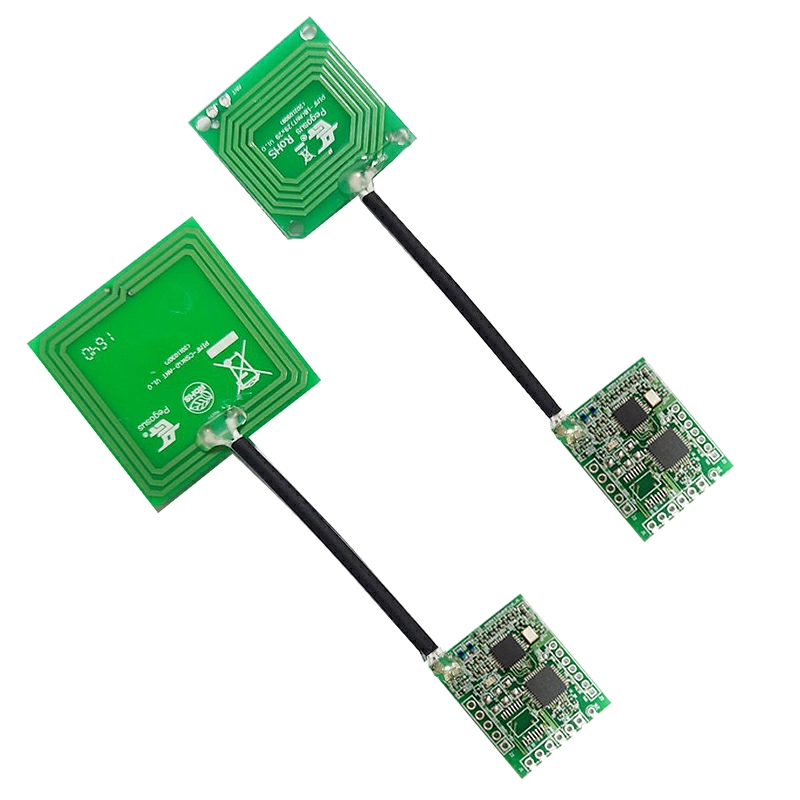

HF 13.56MHz RFID Read Module

PIMF-15

Model number： PIHF-19

Inquiry
Quantity
    Share

    Introduction

    • Support multi-type of cards and protocol : ISO 14443A, ISO 14443B, ISO 15693, ISO 18092, Mifare, Mifare Ultralight, Mifare DESFire, FeliCa, ICODE-2, NFC Tag or compatible
    • With LED indicator.
    • Communications:  UART(TTL)
    • Provide SDK for development.

    Specification

    Frequency13.56MHz
    CompatibilityMifare, Mifare Ultralight, Mifare DESFire, FeliCa, ICODE-2, NFC Tag or compatible
    ISO standardISO 14443A, ISO 14443B, ISO 15693, ISO 18092
    With LED indicatorYES
    With internal antennaYES
    Reading rangeMax. 8.2cm
    Output formatUART(TTL)
    Power VoltageDC 3.8V ~ 5V
    Material---
    Dimensions (LxWxH)mm28.2 x 23

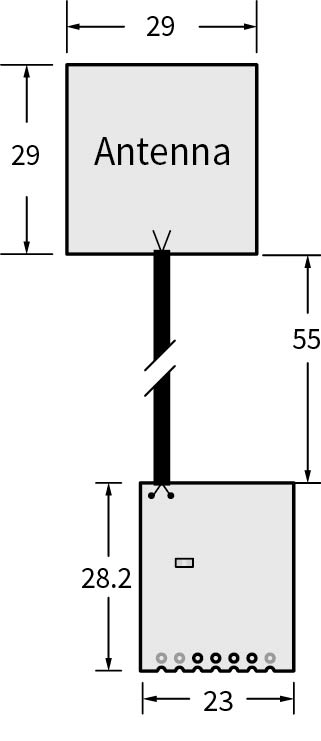

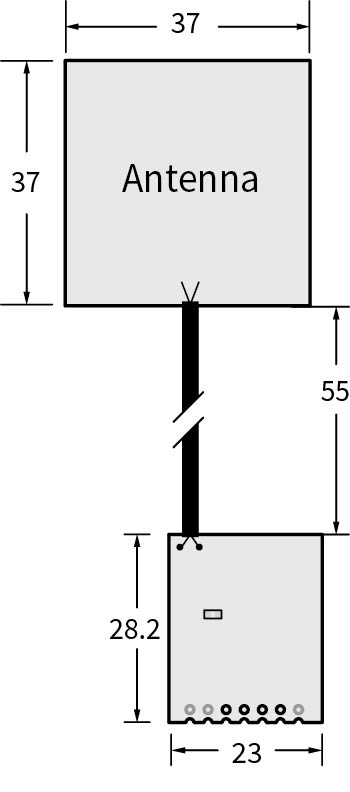

    Dimension: Unit(mm)

    HF 13.56MHz RFID Read ModuleHF 13.56MHz RFID Read Module
    PIHF-19PIHF-19-1

    Application field

    RFID Module-Counterfeit ForestallingRFID Module-Asset ManagementRFID Module-Contactless payment system
    Counterfeit ForestallingAsset ManagementContactless payment system
    RFID Module-HealthcareRFID Module-Entertainment FacilitiesRFID Module-Access Control /Intercom
    HealthcareEntertainment FacilitiesAccess Control /Intercom
    RFID Module-Automobile instrument controlRFID Module-Logistics & Supply chainRFID Module-Production control
    Automobile instrument controlLogistics & Supply chainProduction control
    RFID Module-Robotics NavigationRFID Module-Kiosk / POS systemRFID Module-Rental Equipment Solution
    Robotics NavigationKiosk / POS systemRental Equipment Solution

    Ordering information

    PIHF-19TH07Mini 13.56MHz UID reading module with antenna(37x37mm), TTL,
    Card number: in reverse, Hexadecimal
    PIHF-19TH07-1Mini 13.56MHz UID reading module with antenna(29x29mm), TTL,
    Card number: in reverse, Hexadecimal
    Mifare is a registered trademark of NXP B.V.
    Mifare DESFire is a registered trademark of NXP B.V.
    Mifare Ultralight is a registered trademark of NXP B.V.
    FeliCa is a trademark of Sony Corporation.

    Specifications subject to change without notice for further modification.

    Download

    #NameUpload DateDescriptionDownload
    1
    PIHF-19 series
    2024-11-11
    13.56MHz RFID Reader Module Catalog
      PIHF-19 series
    2
    PIHF-19 series
    2024-11-11
    Datasheet
      PIHF-19 series
