IR Proximity Sensor, ø30mm, Polycarbonate

Touchless Infrared Sensor SwitchTouchless Infrared Sensor SwitchTouchless Infrared Sensor Switch

Model number： PBT-30IRV

Selection Guides For Infrared Sensor Switch Series
Inquiry
Quantity
    Share

    Features

    • Form C relay output (1A@30VDC)
    • Adjustable output time 0.5~20 sec. Trigger / Toggle
    • Adjustable sensing range 3-15cm
    • Voltage : 10V/24V DC
    • Front panel IP65 weatherproof for outdoor use

    Specification

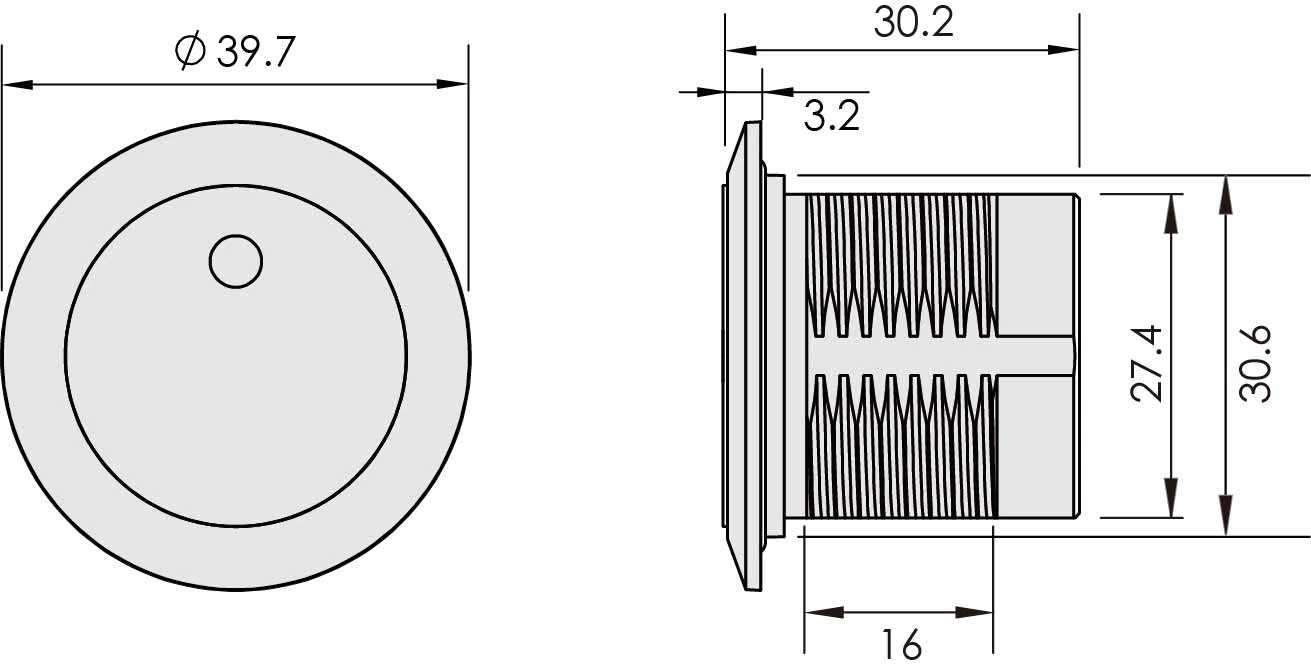

    DIMENSION(MM)IR Proximity Sensor, ø30mm, Polycarbonate
    VOLTAGE / CURRENTDC10V (42mA)~24V(26mA)
    RELAY TYPEForm C dry contact, N.O./N.C./COM.,1A@30VDC, 0.3A@60VDC, 0.5A@125VAC
    OUTPUT TIME0.5~20 sec, Trigger / Toggle
    SENSOR RANGE3~15cm
    LED STATUS INDICATORPower on: Red, Proximity: Blue (Optional Blue/Green)
    CASE MATERIALUV & Fire Polycarbonate
    IP RATINGIP65
    OPERATING LIFERelay: 100,000 cycles
    IR Proximity Sensor, ø30mm, Polycarbonate

    Example Applications

    Elevator ButtonsParking Lot Ticket MachineWater Dispensers
    Elevator ButtonsParking Lot Ticket MachineWater Dispensers
    Ticket MachineDevice SwitchHospital Door/Operating Room
    Automation control
    Ticket MachineDevice SwitchHospital Door/Operating Room Automation control
    Anti-theft DetectionAutomatic Location DetectionGate/Door/Exit Automation control
    Anti-theft DetectionAutomatic Location DetectionGate/Door/Exit Automation control


    Ordering information

    IR Proximity Sensor, ø30mm, Polycarbonate
    We reserve the right to change the specification without prior notice or obligation!
