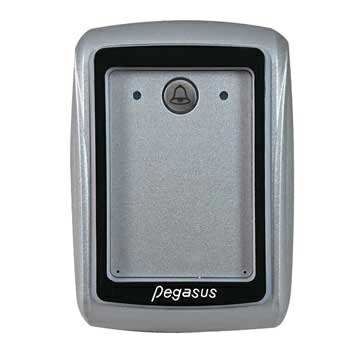

Metal Case Contactless Card Reader(TCP/ IP Embedded)Metal Case Contactless Card Reader(TCP/ IP Embedded)Metal Case Contactless Card Reader(TCP/ IP Embedded)

Model number: PZ-810

Inquiry
Quantity

Features

  • Metal RFID reader
  • Support 125KHz & 13.56MHz

Specifications

Model No.PZ-810NT3PZ-810M0T3
Frequency125KHz ASK13.56MHz
CompatibilityISO18000-2 EM4001, 4100, 4102, TEMIC 5567ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ICODE-2(Optional)
Power VoltageDC 12V
Output Format/InterfaceTCP/IP
IP Rating IP54
Dimensions(LxWxH)mm119x84x32

Dimension: Unit(mm)

Metal RFID reader

Application field

RFID Reader-Charging stationRFID Reader-HMI、PLCRFID Reader-Production controlRFID Reader-Vehicle rental system
Charging stationHMI、PLCProduction controlVehicle rental system
RFID Reader-Kiosk/POS SystemRFID Reader-Membership SystemRFID Reader-Library automation
Kiosk/POS SystemMembership SystemLibrary automation

Ordering information

PZ-810NT3D05125KHz EM Card Reader, TCP/IP, Read card number:5 bytes,Decimal,14 digits
PZ-810M0T3H0113.56MHz Mifare Card Reader, TCP/IP, Hexadecimal, 8 digits
/storage/system/reader/PZ-810/Order-information-for-PZ-810E.webp

Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.


Specifications subject to change without notice for further modification.
