Mini Standalone controller
.webp "Mini Access Controller")
Features
- Flush-Mount mini controller, Compact size, Easy to install
- Support 1000 Cards (Standalone)
- Built-in LED and Buzzer indicator
- Built-in Form A Relay and Adjustable output time 0.5~106 sec.
- Front panel IP54 weatherproof for outdoor use
- Support 125KHz(EM / H.I.D.) & 13.56MHz(Mifare / DESFire / FeliCa )
Specification
| Model No. | PC-30N | PC-30H | PC-30M0 | PC-30F | |
|---|---|---|---|---|---|
| Frequency | 125KHz ASK | 125KHz FSK | 13.56MHz | 13.56MHz | |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation) | ISO 14443 A MIFARE® Classic, Plus, Ultralight, ISO 18092 FeliCa and NFC (card simulation) | |
| User Capacity | 1000 | ||||
| Power Voltage | DC 12V | ||||
| Relay | One (N.O./N.C./COM.) | ||||
| Material | PC | ||||
| Dimensions (LxWxH)mm | 39.7 (Diameter) | ||||
| IP Rating | IP54 | ||||

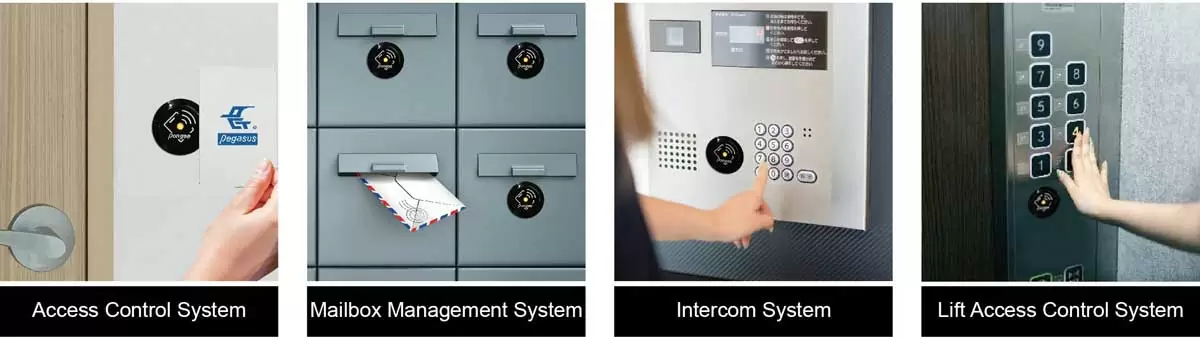

Application field
- Low cost and simple access controller for door, lift, cabinets, drawers, coffer, handle locks, intercom.
- For small area installation.
- Any access control application by RFID cards.

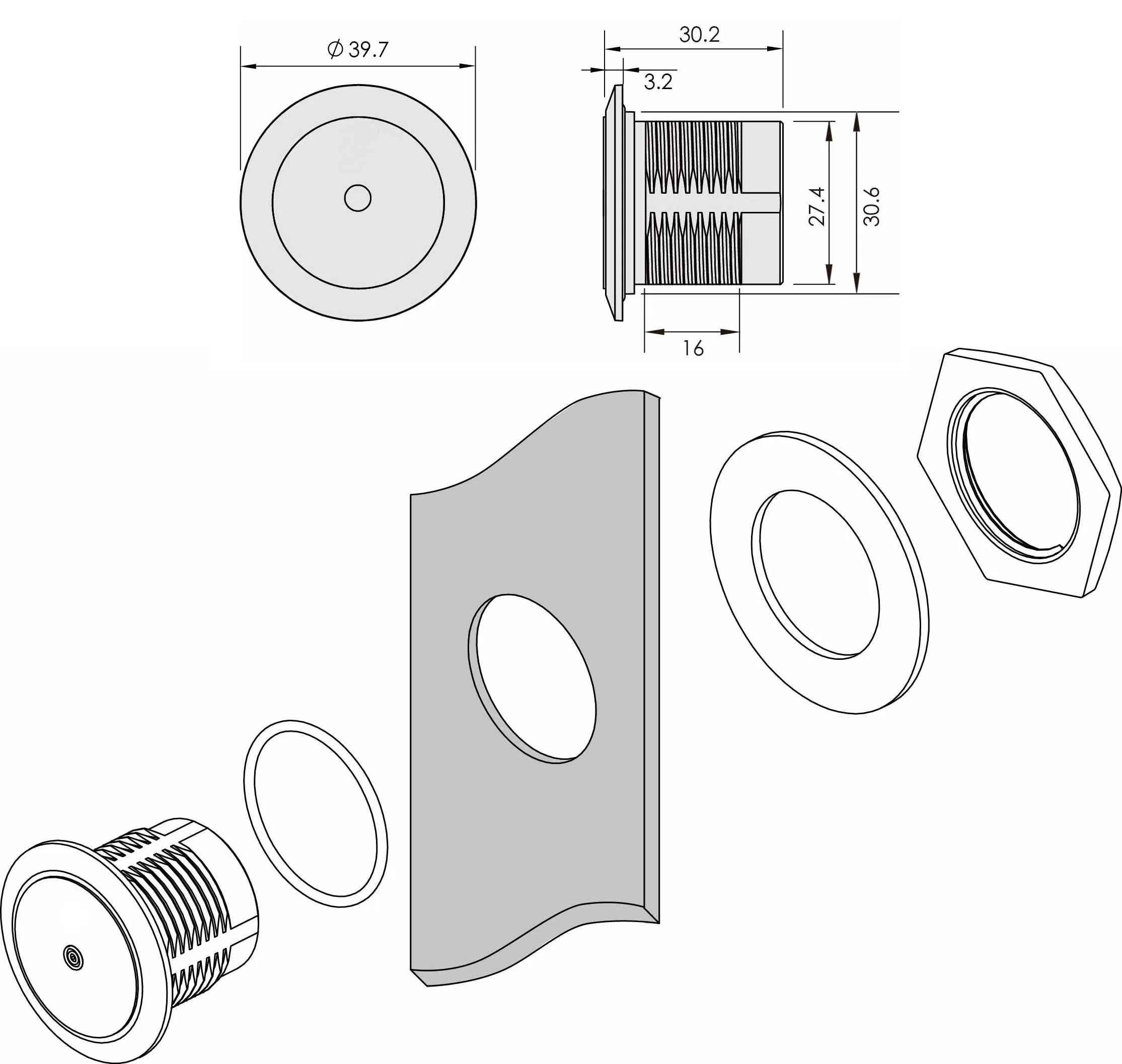

Dimension: mm
Ordering information
| PC-30N | 125KHz ASK standalone access controller |
|---|---|
| PC-30H | 125KHz FSK standalone access controller |
| PC-30NH | 125KHz ASK & FSK standalone access controller |
| PC-30F | 13.56MHz Multi Mifare & Felica, NFC standalone access controller |
| PC-30M0 | 13.56MHz Multi Mifare, NFC standalone access controller |
* Other customer request specifications are welcomed.
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specifications subject to change without notice for further modification.
