Multi-Function Networked controller
Features
Single door (one-way or two-way control)
Classic Multi-Function Controller
Support 32000 Cards (Standalone/Networked)
Built-in LED and Buzzer indicator, door bell
Access method: Card only
Specification
| MODEL NO. | PP-56XN | PP-56XH | PP-56XM0 | PP-56XF | |
|---|---|---|---|---|---|
| FREQUENCY | 125KHz ASK | 125KHz FSK | 13.56MHz | 13.56MHz | |
| COMPATIBILITY | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) | ISO18092 FeliCa | |
| USER CAPACITY | 32,000 card capacity, 32,000 events | ||||
| POWER VOLTAGE | DC 12V | ||||
| INTERFACE | RS-485, RS-232 & TCP/IP (Optional) | ||||
| WIEGAND INPUT | Wiegand (26/34 bits) | ||||
| INPUT | Exit push button / Door monitor / Security sensor | ||||
| OUTPUT | Alarm output / Tamper switch output / Electric lock output | ||||
| KEYPAD | NO | ||||
| MATERIAL | ABS | ||||
| DIMENSIONS (LXWXH)MM | 125X83X27 | ||||
System configuration

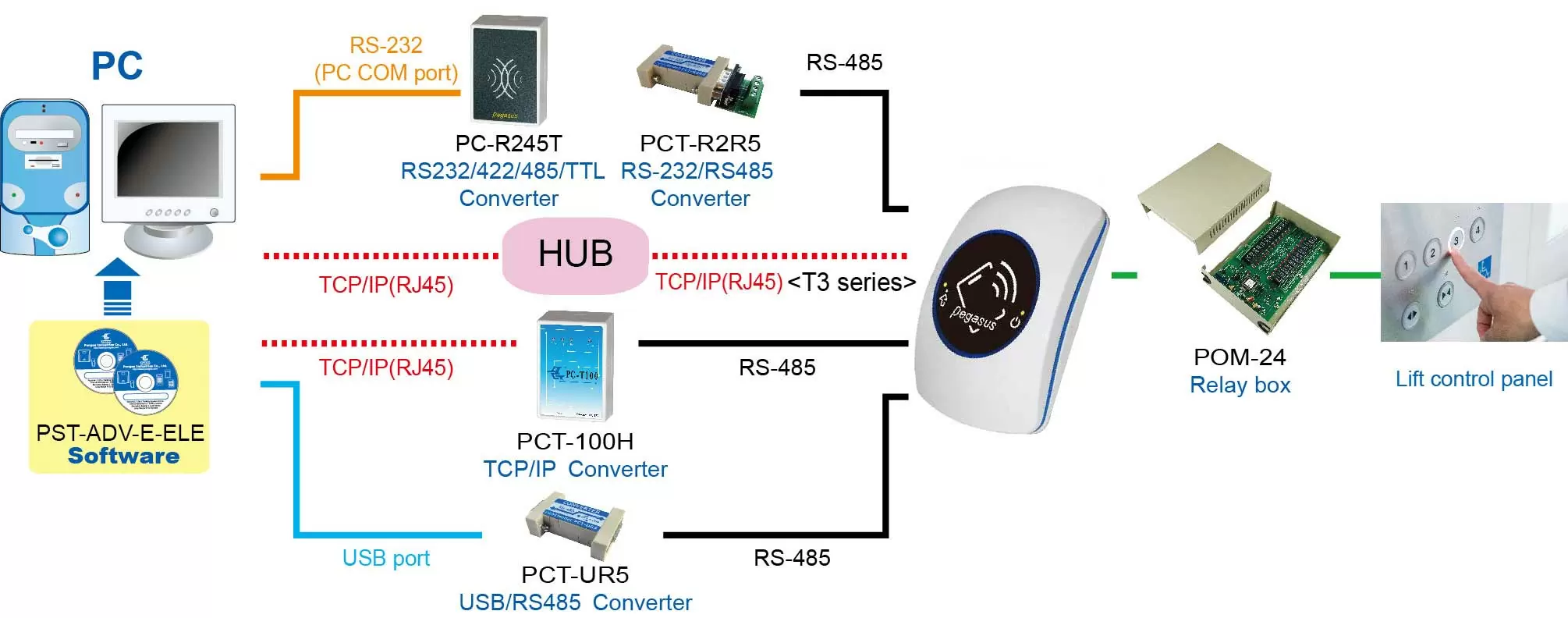

Lift access controller system
Dimension: mm
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
