Multi-Function Networked controller
Features
Single door (one-way or two-way control)
Classic Multi-Function Controller
Support 32000 Cards (Standalone/Networked)
Built-in LED and Buzzer indicator, door bell
Multiple access method: Card only, PIN code only, Card with PIN code
IP54 weatherproof for indoor/outdoor use
Specification
| Model No. | PP-85VXN | PP-85VXH | PP-85VXM0 | PP-85VXF | |
|---|---|---|---|---|---|
| Frequency | 125KHz ASK | 125KHz FSK | 13.56MHz | 13.56MHz | |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) | ISO18092 FeliCa | |
| User Capacity | 32,000 card capacity, 32,000 events | ||||
| Power Voltage | DC 12V | ||||
| Interface | RS-485, RS-232 | ||||
| Wiegand input | Wiegand (26/34 bits) | ||||
| Input | Exit push button / Door monitor / Security sensor | ||||
| Output | Alarm output / Tamper switch output / Electric lock output | ||||
| Keypad | YES | ||||
| Material | ABS | ||||
| Dimensions (LxWxH)mm | 116x81x30 | ||||
| IP Rating | IP54 | ||||

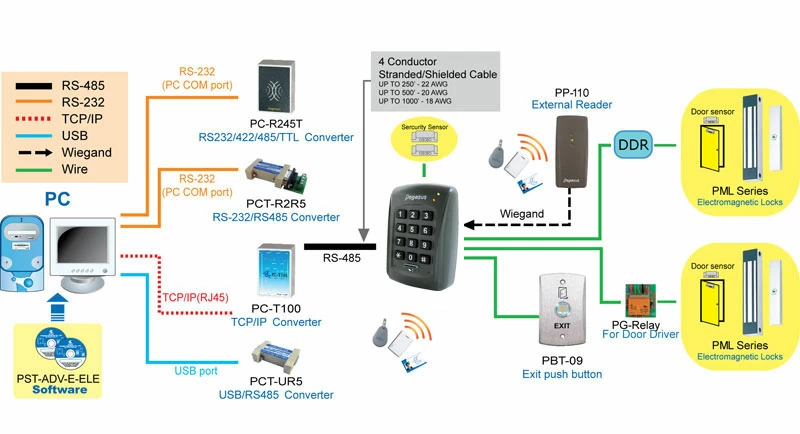

System configuration

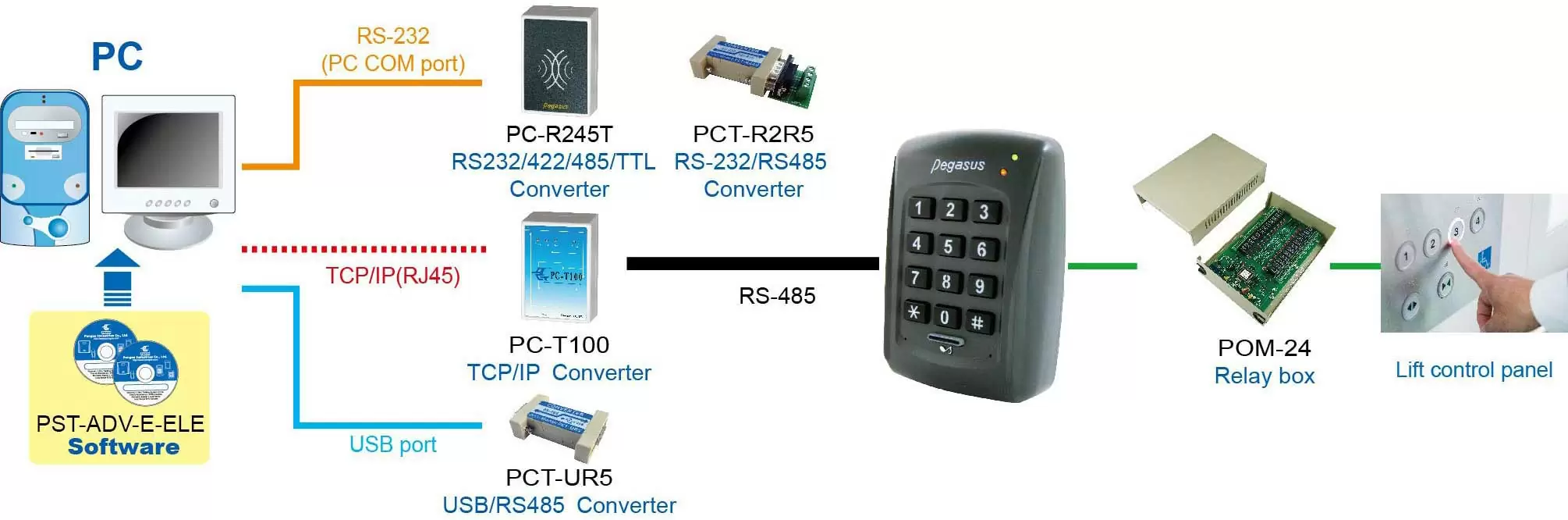

Lift access controller system

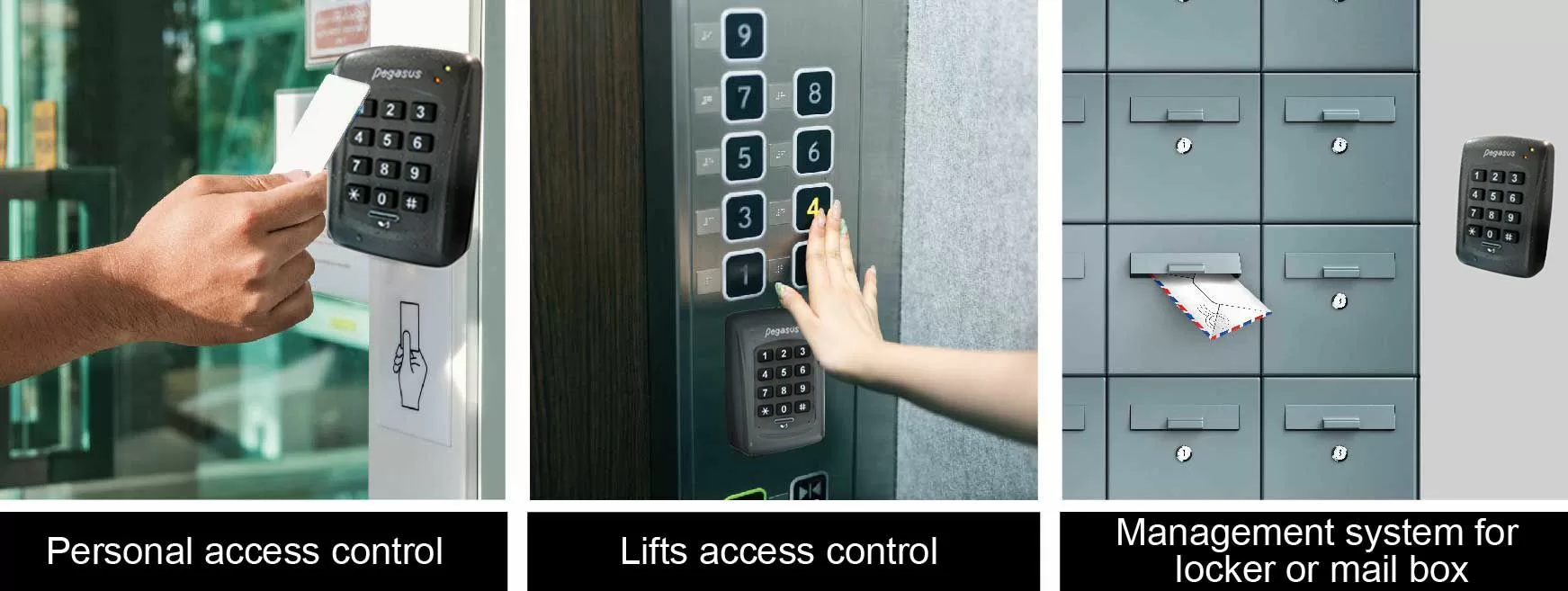

Application field

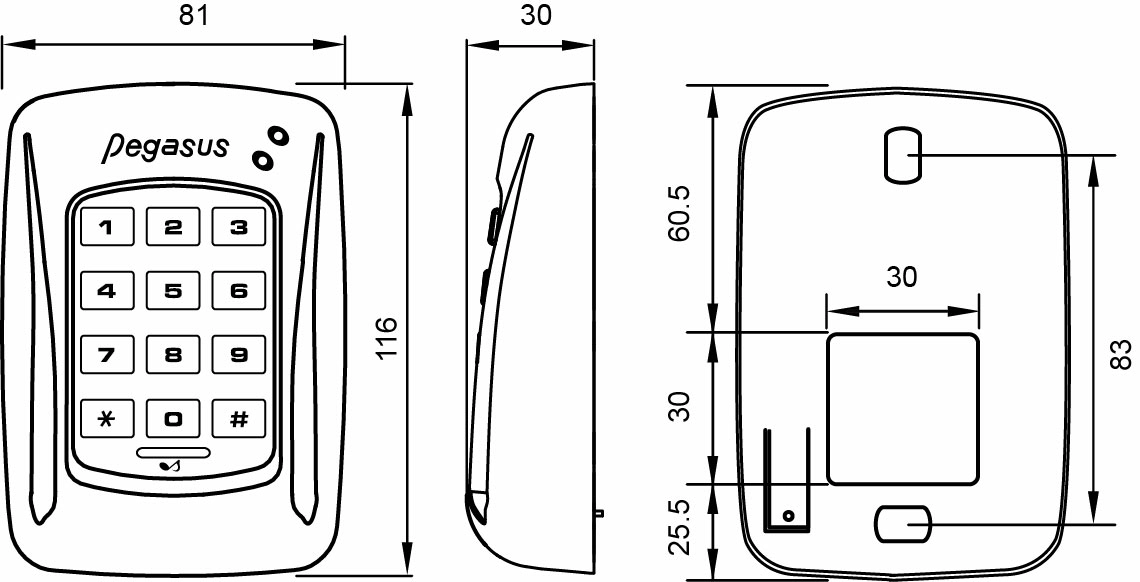

Dimension: mm
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
