Multi-functional Standalone controller
Features
- Classic and popular multi-functional Standalone controller
- Support 2000 Cards, PP-87VX:32,000 Card (Standalone)
- Built-in LED and Buzzer indicator
- Built-in Form A Relay
Specification
| Model No. | PP-87P-6D-K | PP-87N-6D-K PP-87VX/N | PP-87/M0-6D-K PP-87VXM0 | PP-87M3 | |
|---|---|---|---|---|---|
| Frequency | 125KHz ASK | 125KHz ASK | 13.56MHz | Applied with Anti-duplicate card | |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, Pegasus Format | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESfire, NFC (card simulation) | ||
| User Capacity | 1000 | ||||
| Power Voltage | DC 12V | ||||
| Input | Exit push button / Door monitor / Security sensor | ||||
| Output | Alarm output / Tamper switch output / Electric lock output | ||||
| Keypad | Plastic | ||||
| Material | ABS | ||||
| Dimensions (LxWxH)mm | 116x81x30 | ||||
| IP Rating | IP54 | ||||

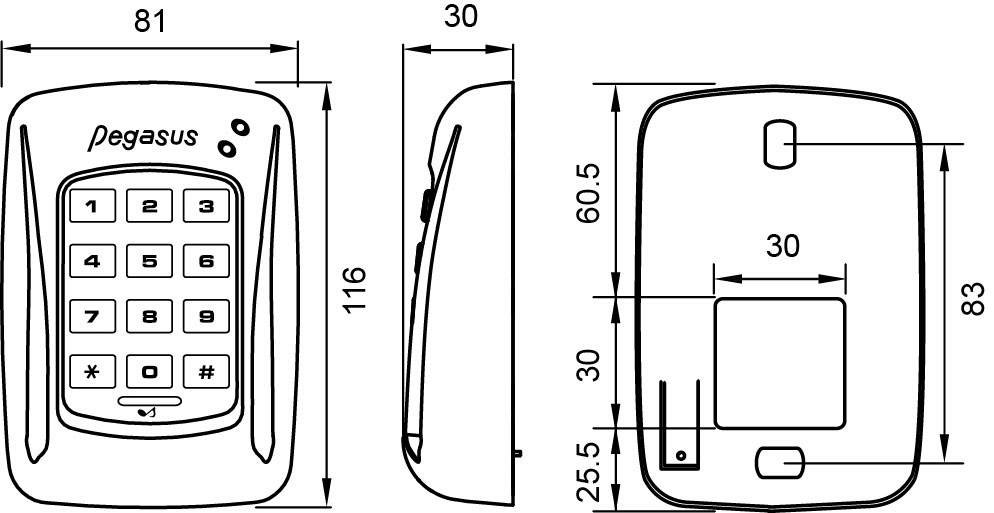

Dimension: mm
System configuration
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PP-87 | 2024-11-11 | Multi-functional Standalone controller Catalog |
