400LBs, 180KGs Waterproof Electromagnetic Lock(Front Mount)

Waterproof Electromagnetic LockWaterproof Electromagnetic LockWaterproof Electromagnetic LockWaterproof Electromagnetic LockWaterproof Electromagnetic Lock

Model number： PGL-180

Selection Guides For EM Lock
Inquiry
Quantity
    Share

    Features

    • Holding force: 400LBs (180KGs)
    • Voltage : 12V/24VDC (Selectable)
    • Optional bracket available to install
    • Suitable for security door (IN Swing)
    • Waterproof IP rate for outdoor installation

    Specification

    Holding Force400LBs (180KGs)
    Voltage /CurrentDC 12V(370mA) / DC 24V(185mA)
    Door monitoring---
    LED indicator---
    TIMER---
    Relay dry contact rating---
    MaterialMagnetStainless steel
    ArmatureSteel
    Dimensions(LxWxD)mmMagnet164x35x26
    Armature130x32x10
    Unit weight (kg)1.5kgs±1%
    Ingress Protection(IP)YES
    Bracket TypeL Bracket:  PG-BLO180
    L &Z Bracket:  PG-BLZ180

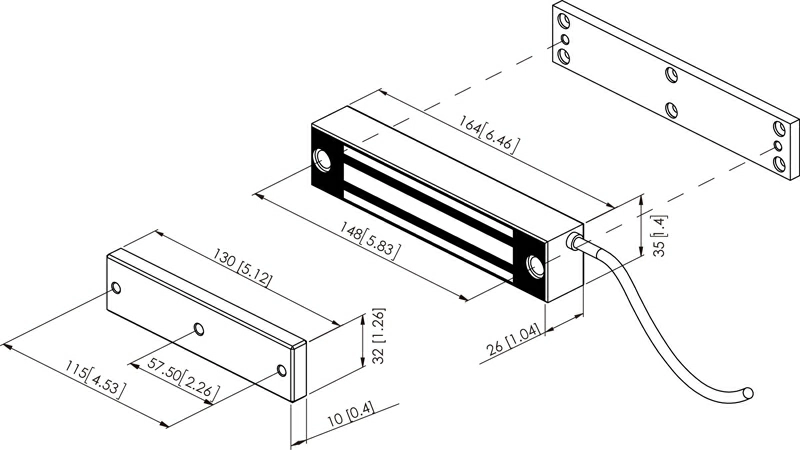

    Dimensions: mm[inch]

    /storage/system/electric_lock/EM_lock/PGL-180EMLOCKdimension.webp

    Application

    For aluminum steel or wooden door, brass door, glass door with frame

    Accessories


    L bracket PG-BLO180
    400LBs, 180KGs Waterproof Electromagnetic Lock(Front Mount)
    L & Z fixed bracket PG-BLZ180
    /storage/system/electric_lock/bracket/PG-BLZ180.webp
    /storage/system/electric_lock/EM_lock/inout-swing-E.webp

    We reserve the right to change the specification without prior notice or obligation!

    proimages/declaration-from-Pongee-Taiwan.jpg

    Download

    #NameUpload DateDescriptionDownload
    1
    PGL-180
    2024-11-11
    400LBs, 180KGs Waterproof Electromagnetic Lock catalog
      PGL-180
