330LBs, 150KGs Electromagnetic Lock

PML-150PML-151 - 300Lbs 150kgs Electromagnetic LockPML-150PML-151 - 300Lbs 150kgs Electromagnetic LockPML-150PML-151 - 300Lbs 150kgs Electromagnetic LockPML-150PML-151 - 300Lbs 150kgs Electromagnetic Lock300Lbs 150kgs Electromagnetic Lock

Model number： PML-151

Selection Guides For EM Lock
Inquiry
Quantity
    Share

    Features

    • Holding force: 330LBs (150KGs).
    • Voltage : 12V/24VDC (Selectable)
    • Compact size; Easy to install
    • Suitable for cabinet, Locker , and other similar devices

    Specification

    Model No. PML-150PML-151
    Holding force330LBs (150KGs)
    Voltage/Current DC 12V(370mA) / DC 24V(185mA)
    Door monitoring ---YES
    LED indicator------
    TIMER------
    Relay dry contact rating---1A ,24VDC/AC
    MaterialMagnetAluminum
    Armature plateSteel
    Dimensions(LxWxD)mmMagnet166x38.5x21
    Armature plate130x32x10
    Unit weight (kg)1kgs±1%
    Ingress Protection(IP)---
    Bracket TypeL BracketPG-BLO151
    L &Z BracketPG-BLZ151
    U BracketPG-BUO150

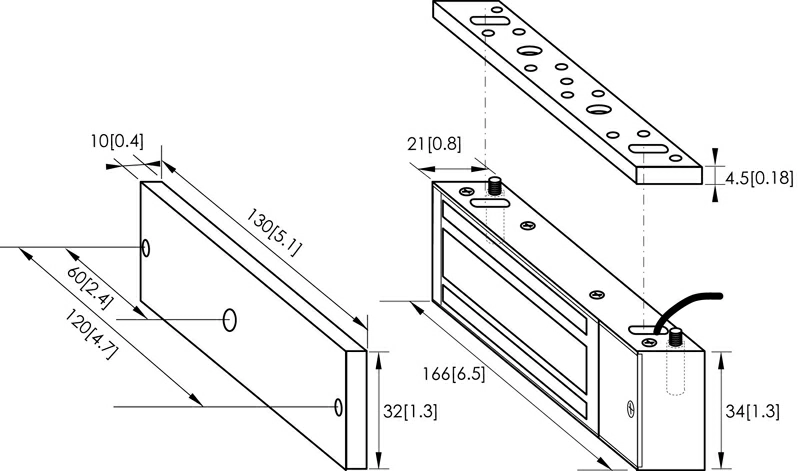

    Dimensions: mm[inch]

    /storage/system/electric_lock/EM_lock/PML151EMLOCKdimension.webp

    Application

    For aluminum steel or wooden door, brass door, glass door with frame

    Accessories

    L type fixed bracket - PG-BLO151
    /storage/system/electric_lock/bracket/PG-BLO151.webp
    L & Z fixed bracket - PG-BLZ151
    /storage/system/electric_lock/bracket/PG-BLZ151.webp
    U type bracket - PG-BUO150

    330LBs, 150KGs Electromagnetic Lock

    /storage/system/electric_lock/EM_lock/inout-swing-E.webp

    We reserve the right to change the specification without prior notice or obligation!

    proimages/declaration-from-Pongee-Taiwan.jpg

    Download

    #NameUpload DateDescriptionDownload
    1
    PML-151
    2024-11-11
    330LBs, 150KGs Electromagnetic Lock catalog
      PML-151
