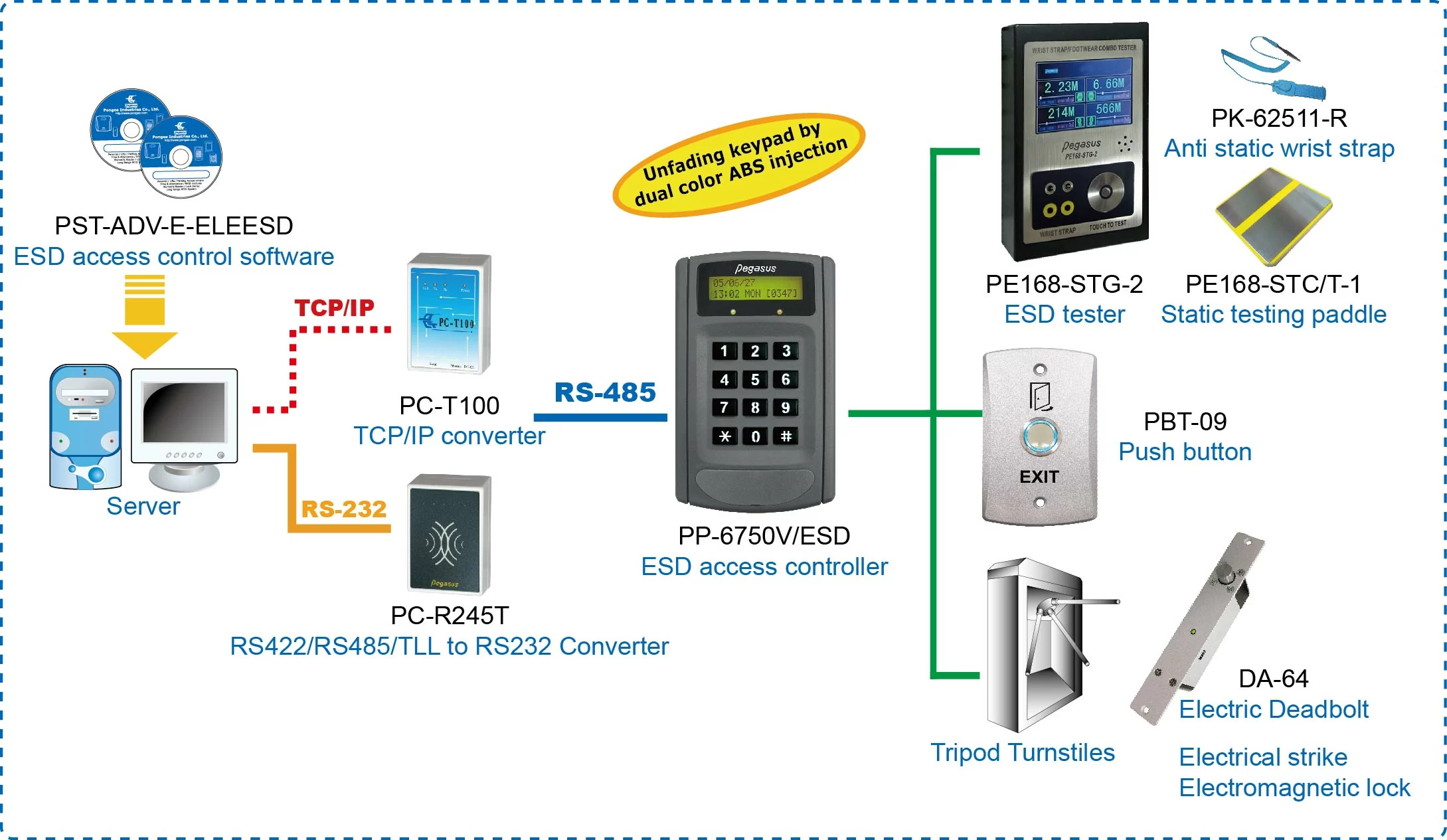

The advanced Pegasus ESD ACS system is integrated with ESD tester, RFID access control system and ESD management application software together. During the past time, many EPA (Electrostatic protection Area) controls of electrostatic shoes, wrist strap are almost tested then recorded manually so easy to make mistakes, this not only wastes time but not easy to audit. The Pegasus ESD ACS system is managed by PC to make sure the person to test the ESD resistance value before entering EPA area, record the access time and control the turnstile or release alarm to reject illegal access. Also, with the failsafe function of the turnstile or electrical locks in emergency to secure the personal life.

• ESD Access Controller
• Support 125KHz & 13.56MHz
• PASS/NG signal : Relay output in dry contact signal
• Provides permission level setting, inquiry, alarm function

  Operating Voltage	DC 12V
  Current	100mA
  Serial interface	RS-485
  Display	16*2 rows of LCD
  Weight	600g± 5%
  Dimensions	138(L) x 85(W) x 29(H)mm

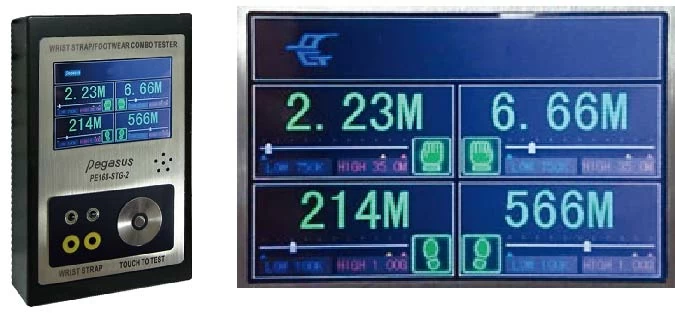

• ESD Tester
• Complies with standards GJB 3007-97, SJ/T 10694-2006 and ANSI ESD S20.20
• The standard resistance and near failure resistance can be set from the color screen login
• PASS/NG signal : Relay output in dry contact signal

SMT production line, clean room such as semiconductor fab, high tech RD room, or military ESD sensitive areas, explosive processing areas, maintain or calibration areas for aero space industries, pharmacy , bio-chemical and hospital ESD restraint areas.

We reserve the right to change the specification without notice or obligation!
