125KHz RFID EM / H.I.D. Module Starter Kit

125KHz EM / H.I.D. Module Starter Kit125KHz EM / H.I.D. Module Starter Kit

Model number： PXEM-F-SDK

Inquiry
Quantity
    Share

    Introduction

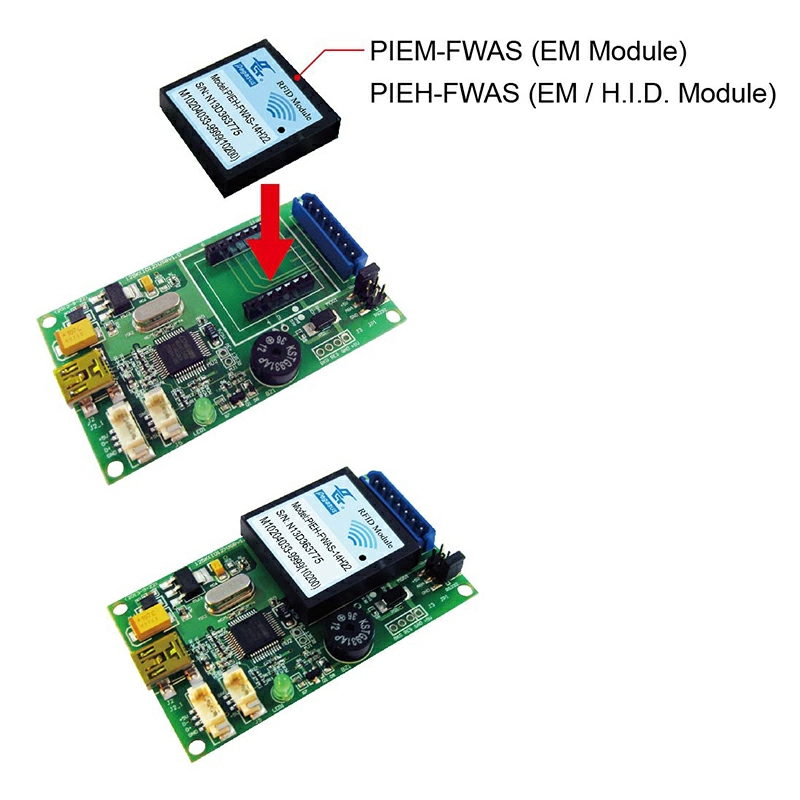

    125KHz ASK EM / FSK H.I.D. starter kit module support multi-cable wiring connection(7 pin, 3 pin, Mini USB cable) convert into multi-interface output for testing.(Wiegand, ABA, RS-232, USB)

    It helps to shorten and simplify RFID products development schedule compared with PIEM-FWAS / PIEH-FWAS-14H22 series module.

    Features

    • With indicating power & status LED.
    • With buzzer for sound warning.
    • Supporting multi-cable wiring connection (7 pin, 3 pin, Mini USB cable) convert into multi-interface output for testing.
    • No need to install driver. (keyboard emulator).
    • Compact size.
    • With 4 fixed holes around the corner.

    Specification

    RFID frequency125KHz ASK EM / FSK H.I.D.
    Output formatWiegand, ABA, RS-232, USB
    Power input5VDC
    Standby / Operating current37mA±10%@5VDC / 40mA±10%@5VDC
    Dimensions(L) ×(W) ×(H) mm/inch64 x 37.5 / 2.5 x 1.5
    Operating temperature-10℃~75℃
    Storage temperature-20℃~85℃
    125KHz RFID EM / H.I.D. Module Starter Kit

    Dimensions : mm

    proimages/module/Dimensions-for-PXEM-F-SDK-C.jpg

    ＊We reserve the right to change the specification without prior notice or obligation!
