Proximity Networked controller
Features
- Single door (one-way or two-way control)
- Classic and slim design, suitable for installation in narrow place
- Support 2000 Cards (Standalone/Networked)
- Built-in LED and Buzzer indicator, door bell
- Access method: Card only
- IP54 weatherproof for indoor/outdoor use
Specification
| MODEL NO. | PP-36L/N | PP-36L/M0 | PP-36L/F | |
|---|---|---|---|---|
| FREQUENCY | 125KHz ASK | 13.56MHz | 13.56MHz | |
| COMPATIBILITY | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) | ISO18092 FeliCa | |
| USER CAPACITY | 2,000 card capacity, 1,000 events | |||
| POWER VOLTAGE | DC 12V | |||
| INTERFACE | RS-485, RS-232 | |||
| WIEGAND INPUT | Wiegand (26/34 bits) | |||
| INPUT | Exit push button / Door monitor / Security sensor | |||
| OUTPUT | Alarm output / Tamper switch output / Electric lock output | |||
| KEYPAD | NO | |||
| MATERIAL | ABS | |||
| DIMENSIONS (LXWXH)MM | 118x75x17 | |||
| IP RATING | IP54 | |||
System configuration

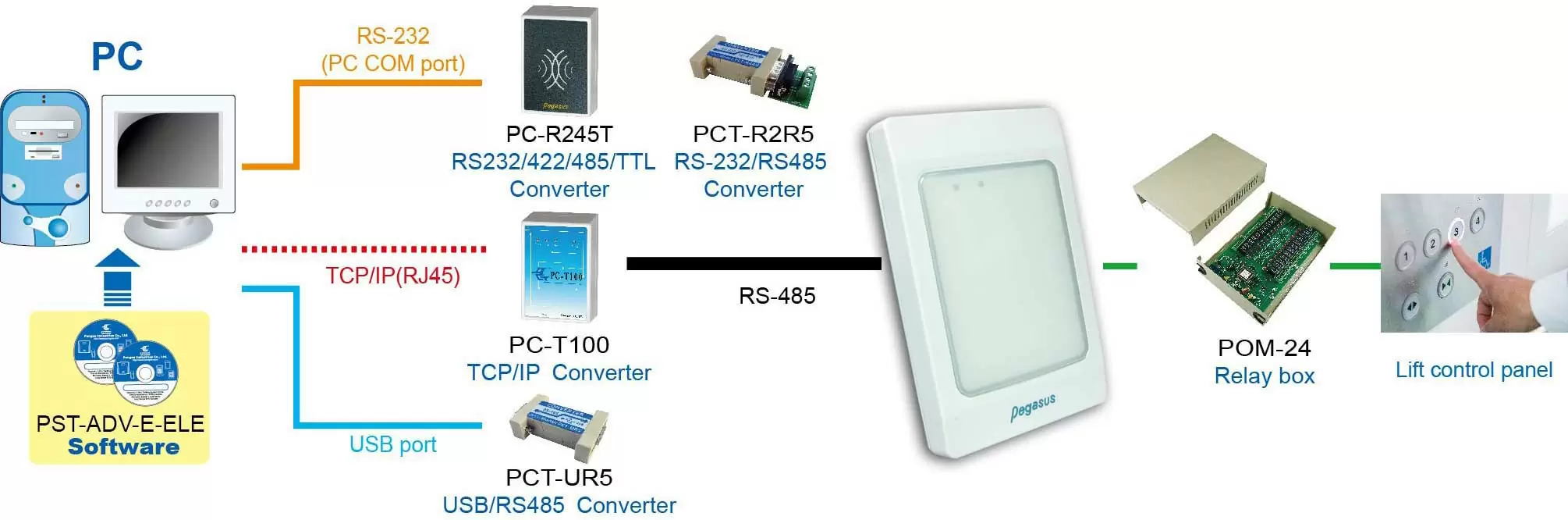

Lift access controller system
Dimension: mm
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
