RFID Card Reader and Writer / Programmer

ISO 14443A ISO14443B ISO15693 Desktop RFID USB Card Reader and Writer / Programmer

Model number： PUA-310VM2

Inquiry
Quantity
    Share

    Features

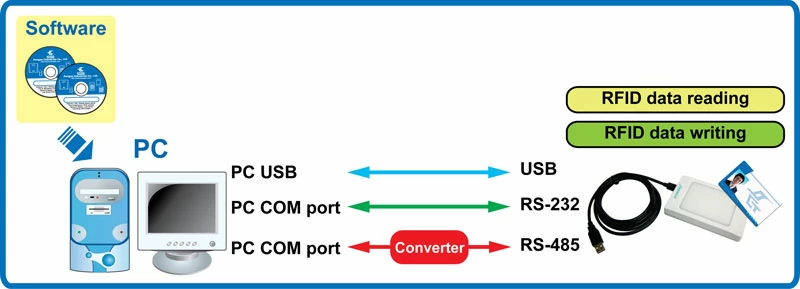

    The RFID smart card reader and writer is designed to comply with ISO14443A / B、ISO15693 standard for reading and writing the smart card for various applications. such as prepaid value system for vehicle, ticket, membership club, dining, laundry, etc. it's easily to communicate with PC by USB or RS-232, RS-485 interface.

    /storage/system/reader/PIC-for-Smart-Card-Reader-and-Writer.webp

    Specifications


    MODEL NO.PUA-310VM2
    FREQUENCY13.56MHz
    COMPATIBILITY13.56MHz Mifare (ISO 14443A / 14443B / 15693)
    POWER VOLTAGEDC 5V / DC 12V
    INTERFACEUSB, RS-232, RS-485
    Device Driver Operating System Support*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10
    *Mac OS 8/9, OS X
    *Linux/Android
    *Windows 11(Optional)
    IP RATINGIP54
    DIMESIONS(LXWXD)MM118x75x17

    Dimension: Unit(mm)

    RFID Card Reader and Writer / Programmer

    Ordering information

    PUA-310V-0/M2R2/Y4Desktop, RS-232 interface , reader and writer , support  ISO 14443A
    PUA-310V-0/M2R2/Y4SDesktop, RS-232 interface , reader and writer ,support ISO 14443A, Card number: in positive
    PUA-310V-0/M2U2/Y4Desktop, USB interface , reader and writer , support ISO 14443A
    PUA-310V-0/M2U2/Z2Desktop, USB interface , reader and writer , support ISO 15693
    PUA-310V-0/M2U2/Z1Desktop, USB interface , reader and writer , support ISO 14443A / 14443B / 15693
    PUA-310V1-0M2R2Y4Surface mounting, RS-232 interface , reader and writer, support ISO 14443A
    PUA-310V1-0/M2R5/Y4Surface mounting, RS-485 interface , reader and writer, support ISO 14443A
    PUA-310V1-0M2R2Y4-5VSurface mounting, RS-485 interface , reader and writer, support ISO 14443A, DC 5V
    PUA-310V1-1/M2U2/Y4BSurface mounting, USB interface , reader and writer, support ISO 14443A, with epoxy, black

     Optional Accessories

    /storage/system/reader/R-12-310R2-1800-1.webp

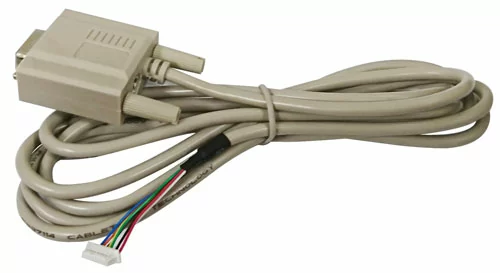

    R-12-310R2-1800-1 : RS-232 Cable
    /storage/system/reader/PG-ADAPTER100-240-2.webp

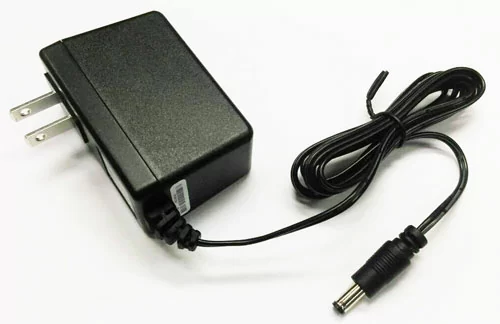

    PG-ADAPTER/100-240-3 :100-240V Adapter
    /storage/system/reader/interface-converter-PCT-R2R5.webp

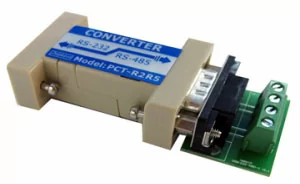

    PCT-R2R5: RS-232 to RS-485 Interface Converter
    /storage/system/reader/interface-converter-PCT-UR5-(1).webp

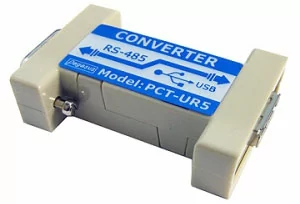

    PCT-UR5: USB to RS-485 Interface Converter

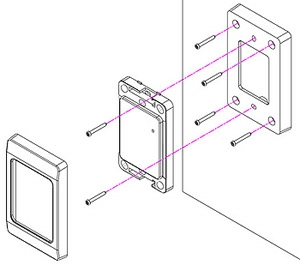

    R-21-310-3N : Insulator for PUA-310V1
    • Dimension : 119.6(L) x 76.5(W) x 15(H)mm
    • Feature : Avoid intervention
    • Material : Acrylic
    /storage/system/accessories/Insulator-for-PUA-310.webp
    /storage/system/PPT-350/PPT-350SWLM0_PIC.webp

    Mifare is a registered trademark of NXP B.V.

    We reserve the right to change the specification without prior notice or obligation!
