Mullion RFID Reader
Features
- Mullion RFID reader
- Support 125KHz & 13.56MHz
Specification
| Model No. | PP-110-1/N | PP-110-1/M0 |
|---|---|---|
| Frequency | 125KHz | 13.56MHz |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ICODE-2(Optional) |
| Power Voltage | DC 5V / 12V / 24V±10%, DC 7V~32V(Optional) | |
| Output Format/ Interface | Wiegand / ABA / UART / RS-232 / RS-485 | |
| IP Rating | IP54 | |
| Dimensions (LxWxH)mm | 94x43x15 | |
Dimension: Unit(mm)
Application field
 |  |  |  |
| Charging station | HMI、PLC | Production control | Vehicle rental system |
 |  |  |
| Kiosk/POS System | Membership System | Library automation |

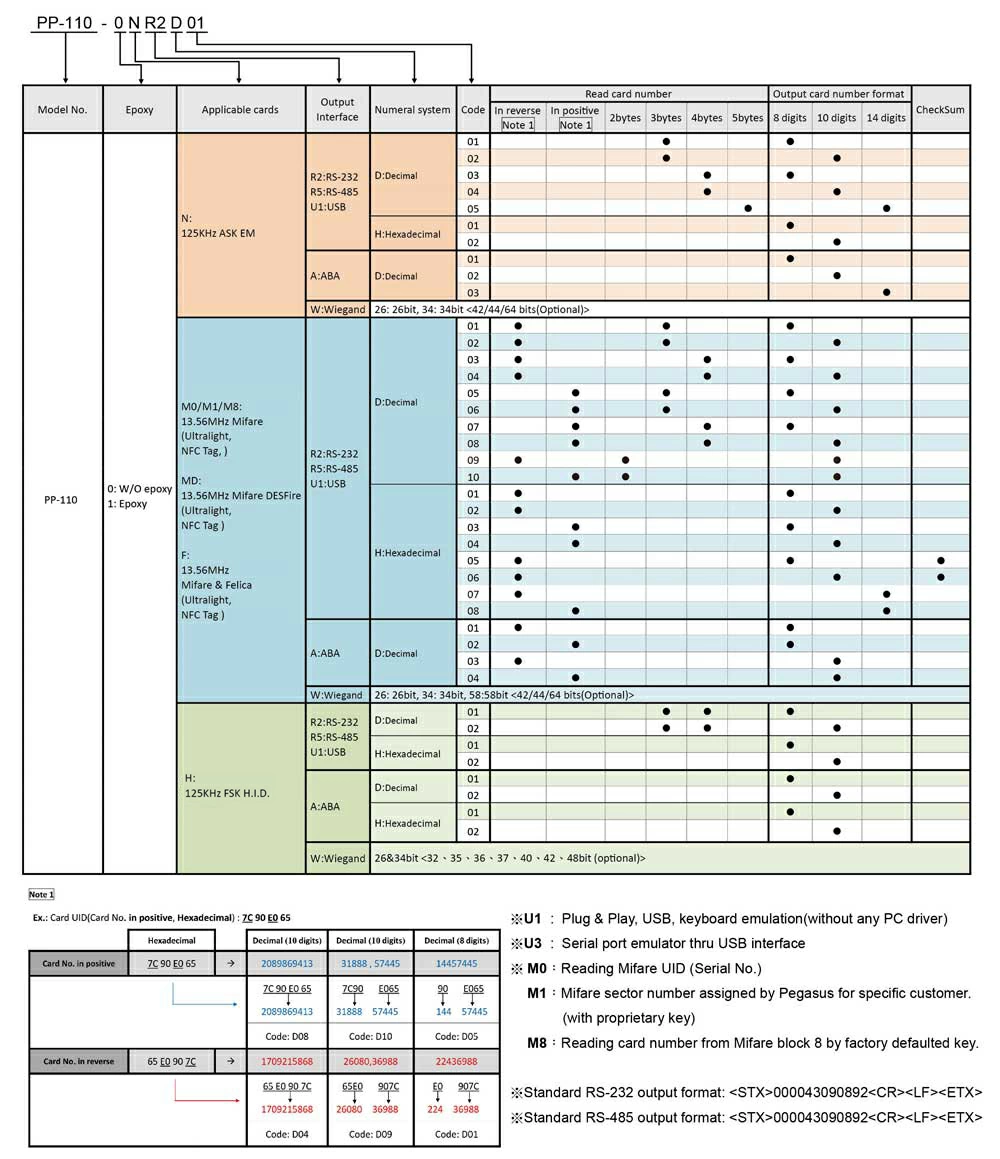

Ordering information
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PP-110 | 2024-11-11 | Mullion RFID Reader Catalog |
