Guard Patrol Tour Terminal (Bluetooth)
- One-touch operation: pressing a button for reading ID card.
- Modern design with multiple function code.
- Interface: USB / Bluetooth
- OLED display, real time clock
- Download the data thru. USB interface and then generate the report by the PATROL MANAGER software.
- Battery Embedded.
- Free SDK available.
- Modify the card no. display time(01~60sec.)
- Device Driver Operating System Support:
*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 /11
*Mac OS 8/9, OS X
*Linux/Android
Specification
| RFID Frequency | 125KHz EM / 13.56MHz Mifare / 860~928MHz |
| Interface | USB / Bluetooth |
| Events | 32,000 |
| Stand-by time | 20 hours |
| LED | Power and status LED |
| Identity code | Decimal, 8 digits |
| Reading range | Max.8cm(EM) / Max.3.5cm(Mifare) / Max.8cm(Depending on UHF label) |
| Power supply | USB 5V / 3.7V(Lithium Battery) |
| Operating temperature | -10℃ ~ 75℃ |
| Storage temperature | -10℃ ~ 85℃ |

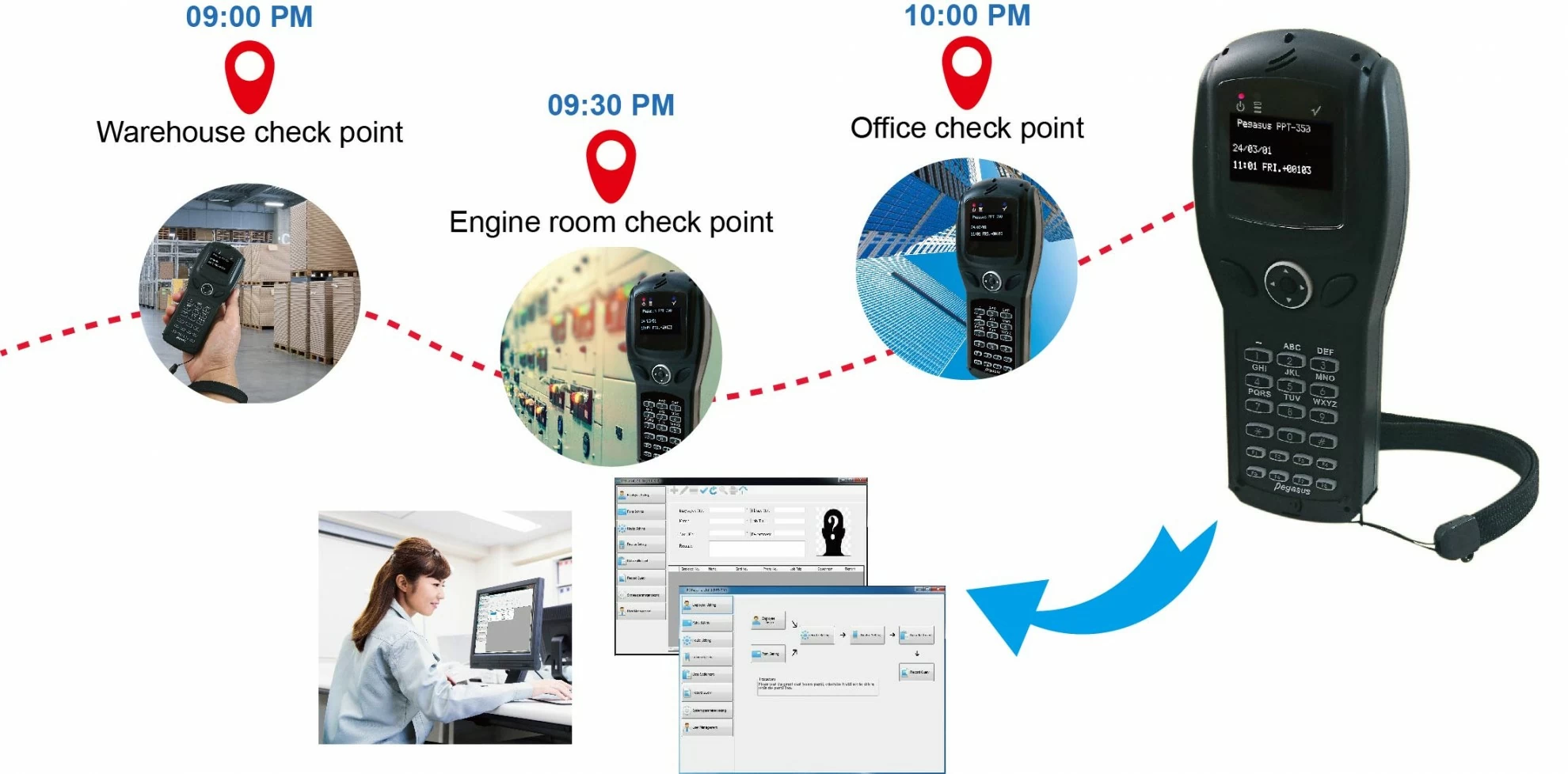

Applications
- Policeman or Military patrolling
- Security personnel patrolling
- Remote equipment inspections/maintenance
- Goods delivery, transportation management
- Time attendance
- Data collector
Dimension: Unit(mm)
Accessories
| Protective Case | |
| Model No. | R-26-350-4 |
| Material | Silicone |
| Color | Cadet Green |
Ordering information
| PPT-350N | 125KHz EM Guard Patrol Tour Terminal, 32000 events |
| PPT-350M0 | 13.56MHz Mifare Guard Patrol Tour Terminal, 32000 events |
| PPT-350M3 | ICODE-2 Guard Patrol Tour Terminal, 32000 events |
| PPT-350G | Mifare, ISO14443B, ICODE-2, FeliCa Guard Patrol Tour Terminal, 32000 events |
| PPT-350NB | 125KHz EM Guard Patrol Tour Terminal, 32000 events, Bluetooth |
| PPT-350M0B | 13.56MHz Mifare Guard Patrol Tour Terminal, 32000 events, Bluetooth |
| PPT-350M3B | ICODE-2 Guard Patrol Tour Terminal, 32000 events, Bluetooth |
| PPT-350GB | Mifare, ISO14443B, ICODE-2, FeliCa Guard Patrol Tour Terminal, 32000 events, Bluetooth |
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PPT-350 | 2024-11-19 | Guard Patrol Tour Terminal catalog |
