Wiegand to RS232 / RS485 Converter
Features
- The converter is designed for remote control where need Wiegand input but far from the control center to terminal. It a good two way transmit (bi-direction) communication device for access control system.
- Wiegand WG26, 34 automatically identification. (For other Wiegand or 485 (232)protocols, please provide information for customization)
- The conversion process should be manual setting by Switch. (Default is Wiegand to RS-485(RS-232))
- With Bi-Color status LED.

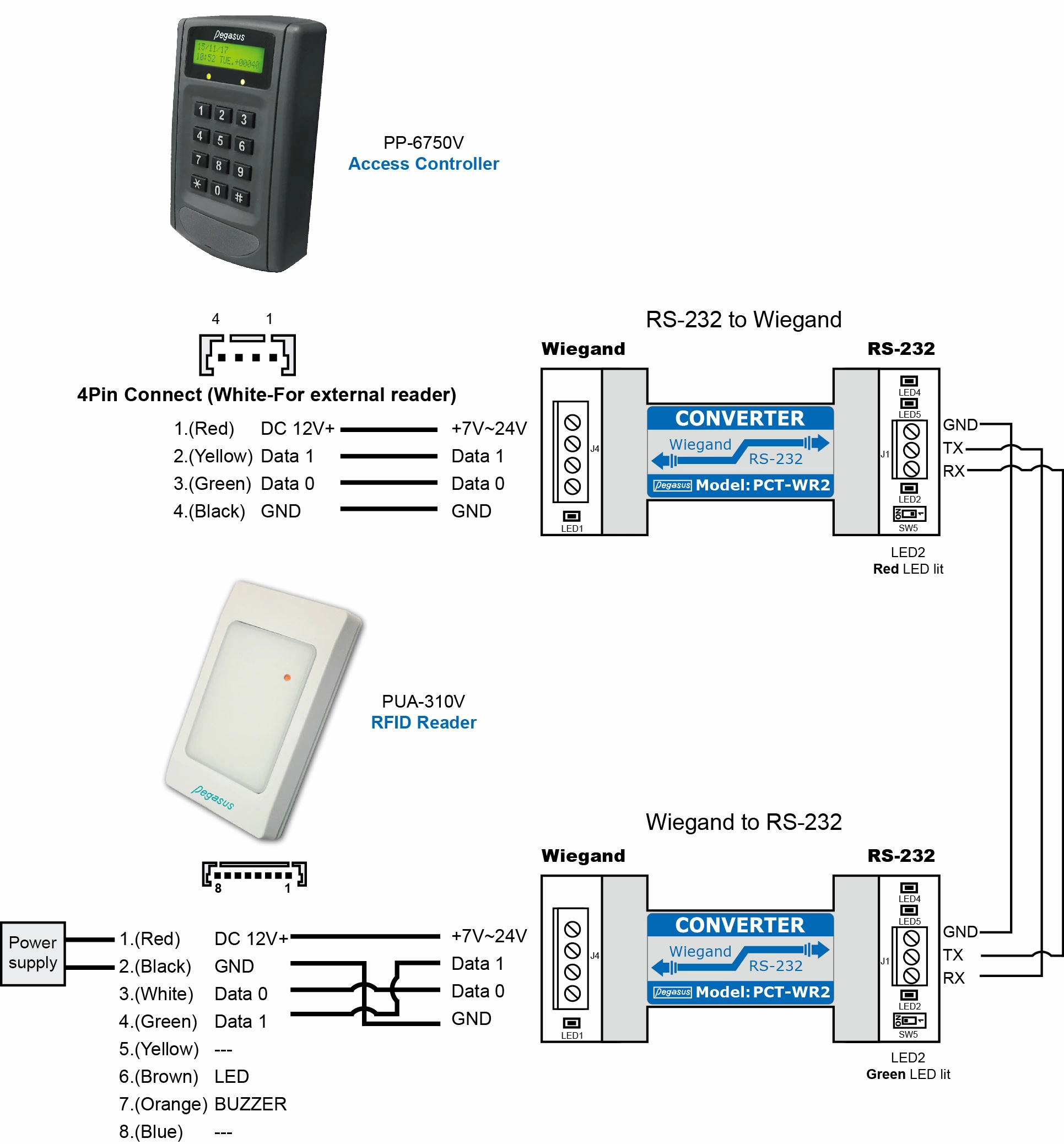

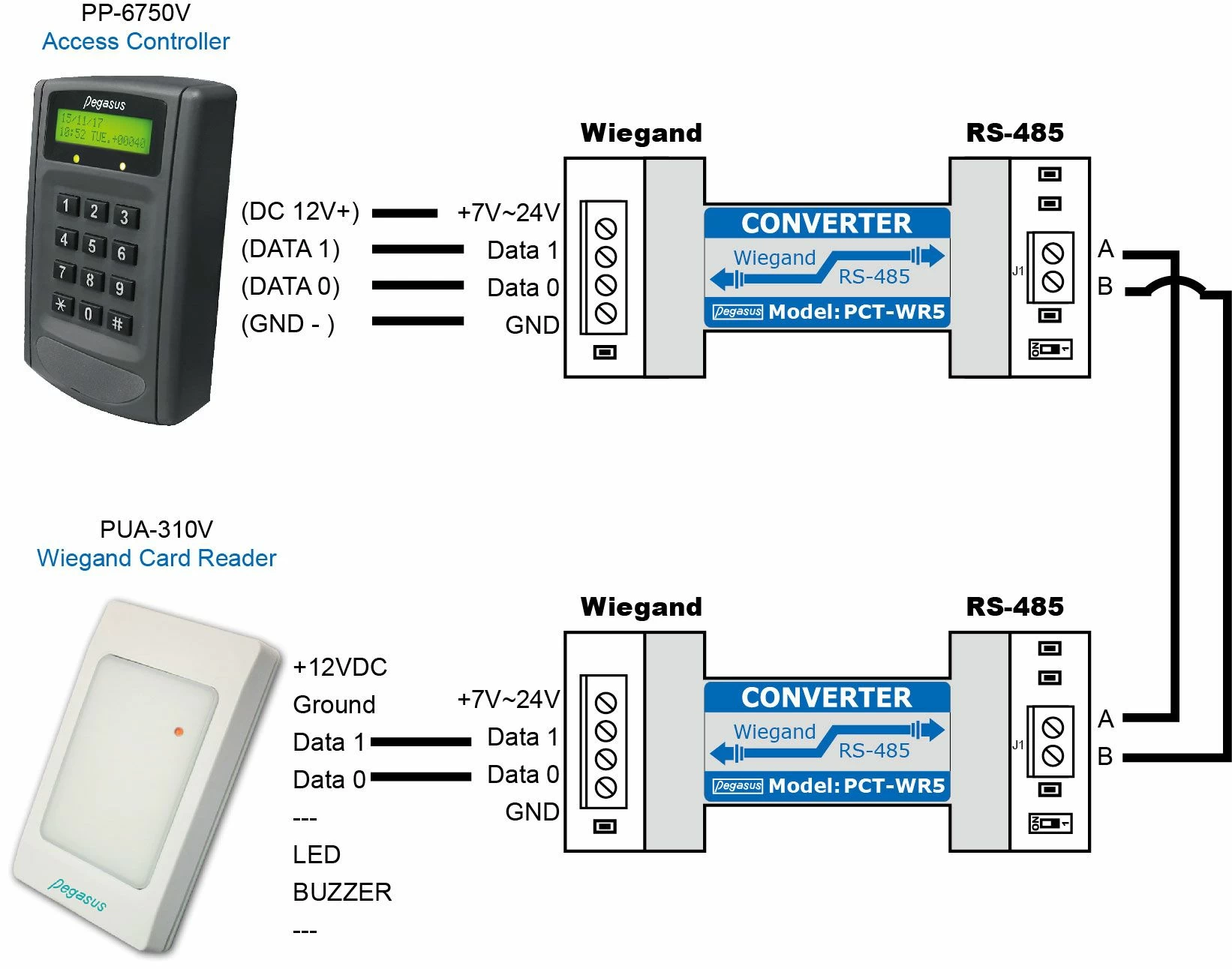

- This Wiegand signal extender needs 2pcs to work together.
Specifications

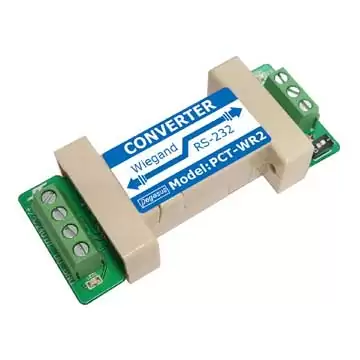

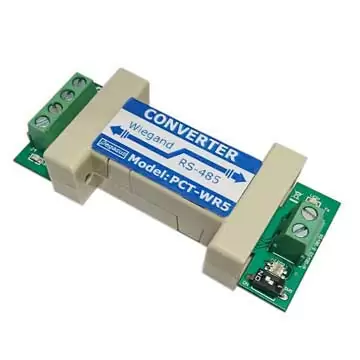

| Appearance |  |  |
|---|---|---|
| Model No. | PCT-WR5 | PCT-WR2 |
| Signal | Wiegand / RS-485 | Wiegand / RS-232 |
| Power Voltage | DC7-24V | |
| Dimensions (LxWxH)mm | 77x23x17 | |
| Output format can be customized(option) | ||

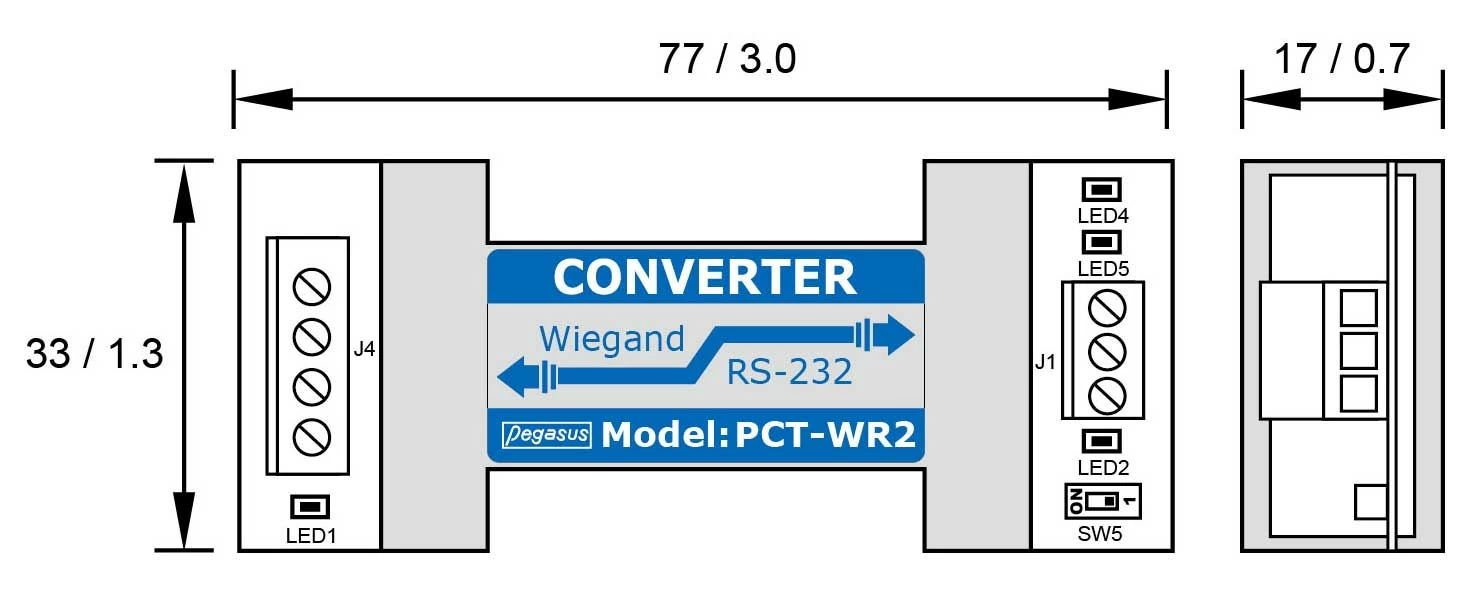

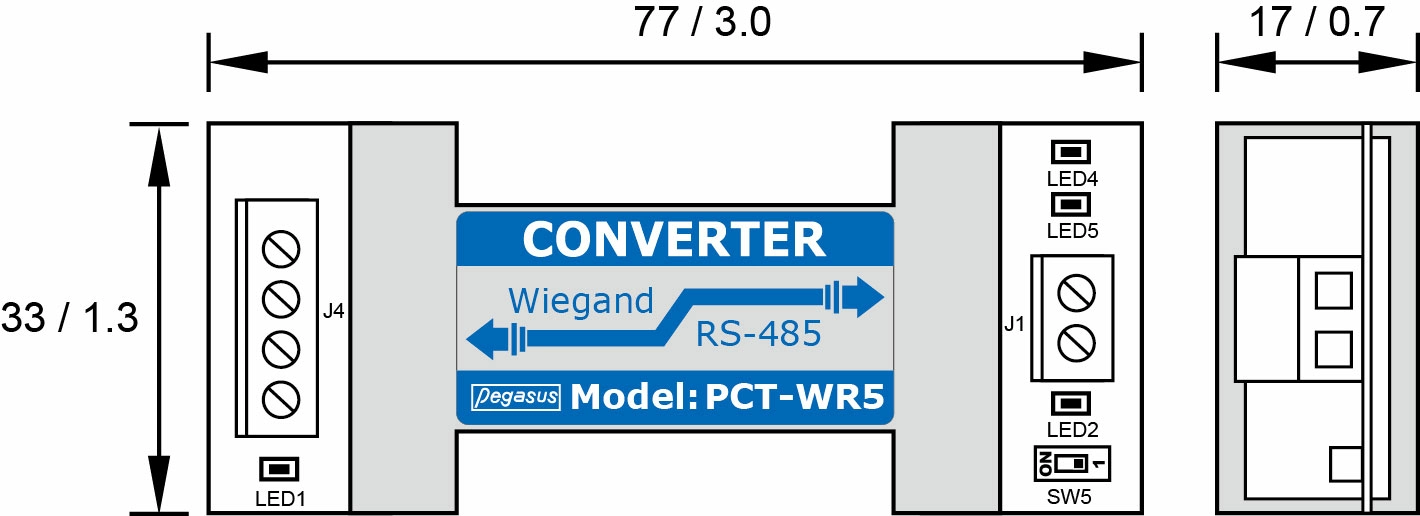

Dimensions: Unit(mm / inch)
| PCT-WR5 |
 |
 |
| PCT-WR2 |
 |
 |
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PCT-WR5 PCT-WR2 | 2024-11-19 | Wiegand to RS232 / RS485 Converter |
