Wireless Electric Bolt Lock – Fail Safe

DA-64RAD Wireless smart deadboltWireless smart deadboltWireless smart deadbolt ManufacturersWireless smart deadbolt SuppliersDA-64RAD Wireless smart deadboltDA-64RAD Wireless smart deadbolt

Model number： DA-64RAD

Selection Guides For Electric Drop bolt
Inquiry
Quantity
    Share

    Features

    • Door position status monitor output contact
    • Adjustable door lock delay timer

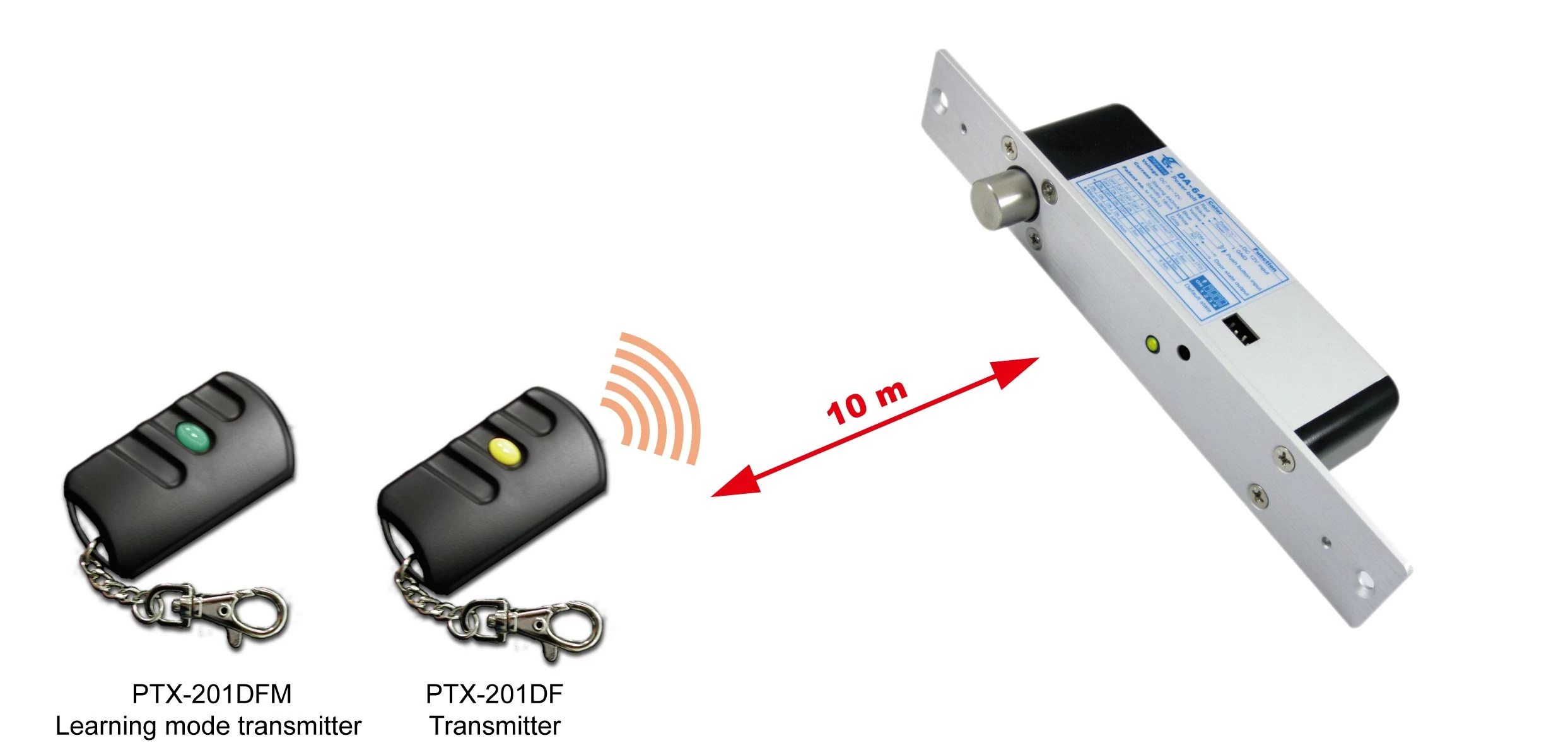

    • Remote control ranges up to 10m
    • Transmitter ID's up to 40 pieces(PTX-201DF)
       DA-64RA/D by DIP Switch for learning mode
       DA-64RDA/D by Master Transmitter (PTX-201DFM) for learning mode
    • For emergency door, glass door and frameless glass door. Wooden door

    Specification

    Model No.DA-64RA/DDA-64RDA/D
    TypeFail safe
    Voltage / CurrentDC11~16V(Standby:100mA, Working:850mA)
    Time Delay10 Sec. / 6 Sec. / 3 Sec.
    LED indicatorYES
    Door position sensorYES
    Dimension (LxWxD)mmFaceplate204x33x3
    Lock132x30x42
    Net Weight (g)687g±1%
    BracketSurface Mount Bracket: PG-B64
    Glass Door U-Bracket: PG-DASTC-2

    Dimension: Unit(mm)

    /storage/system/electric_lock/Dimension-for-DA-64E.webp/storage/system/electric_lock/application_DA-64RDAD-E.webp

    Accessories

    External hanging bracket - PG-B64
     /storage/system/electric_lock/bracket/PG-B64.webp/storage/system/electric_lock/bracket/PG-B64.-installationjpgE.webp

    For glass door without frame

    External hanging bracket - PG-B64 + Glass jig - PG-DASTC-2

    /storage/system/electric_lock/bracket/PG-B64.webp/storage/system/electric_lock/bracket/PG-DASTC-2.webp  /storage/system/electric_lock/bracket/PG-B64-installationjpg-3E.webp

    We reserve the right to change the specification without prior notice or obligation!

    proimages/declaration-from-Pongee-Taiwan.jpg

    Download

    #NameUpload DateDescriptionDownload
    1
    DA-64RAD
    2024-11-11
    Wireless Electric Bolt Lock – Fail Safe catalog
      DA-64RAD
