Lift Access Controller Link with Intercom

DIO-2408 Lift Access Controller Link with Intercom

Model number： DIO-2408

Inquiry
Quantity
    Share

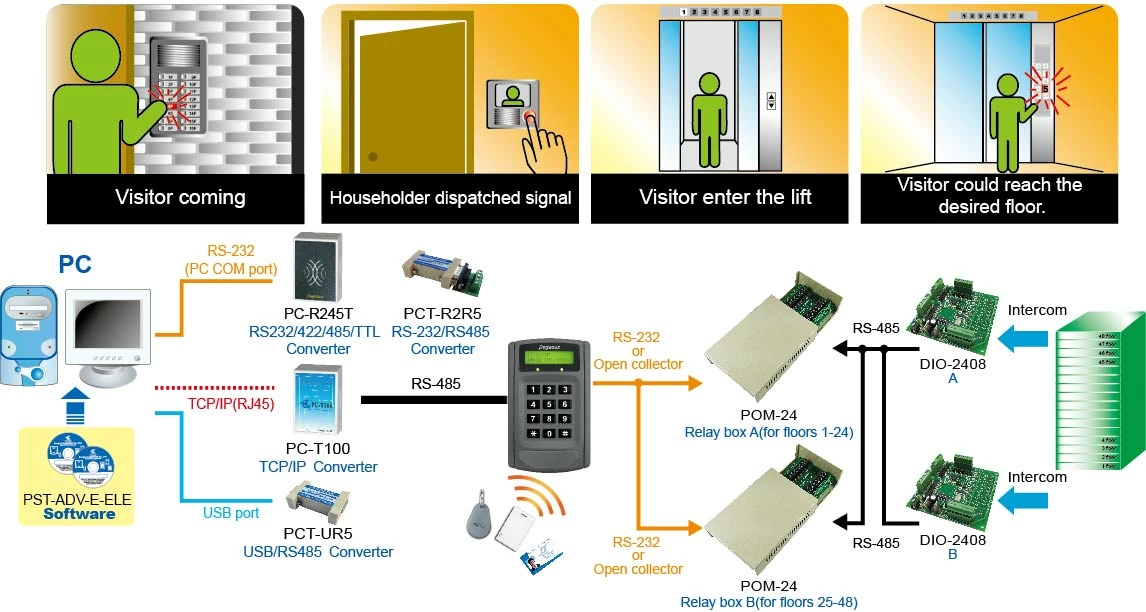

    System configuration

    proimages/lift_access_control_system/Lift_controller_link_with_intercomE.jpg

    Product Description

    DIO-2408 is designed to support and work with 24-floor Lift controller. It can allow householder to press one button at home when visitor called by door phone front door to assign available floor for his/her visitors, so that the visitor could reach the desired floor with safety and it is helpful convenient for efficient access control.

    Specifications

    Dimensions118(L) × 75(W) × 13(H) mm
    Operating temperature/humidity-15 ℃ ~ 55 ℃ / 20%~90%
    Power supplyDC 12V / 1AMP
    CurrentStandby: 25~35mA
    Working: 60~70mA
    Serial interfaceOpen collector / RS-485 / RS-232
    ​​​​​​

    We reserve the right to change the specification without notice or obligation!
