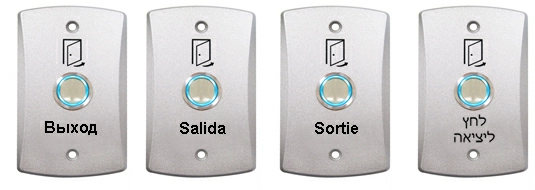

Exit Push Button (With LED)
Specification
| Size | 5(plate) / 21(total depth) x 70(W) x 115(L)mm |
|---|---|
| Hole distance | 83mm |
| Material | Zinc alloy |
| Power | DC 12V 1A |
| LED | DC12V 15mA |
| Life | 3,000,000 cycles (Mechanical) / 200,000 cycles (Electrical) |
| Key stroke | 1.0mm |
| Weight | 132g±5% |
| Operating temperature | 0℃ ~ 55℃ |
| Humidity | 10%~80% |
| N.O. / N.C. / COM. | |
| Using OMRON basic switches. | |

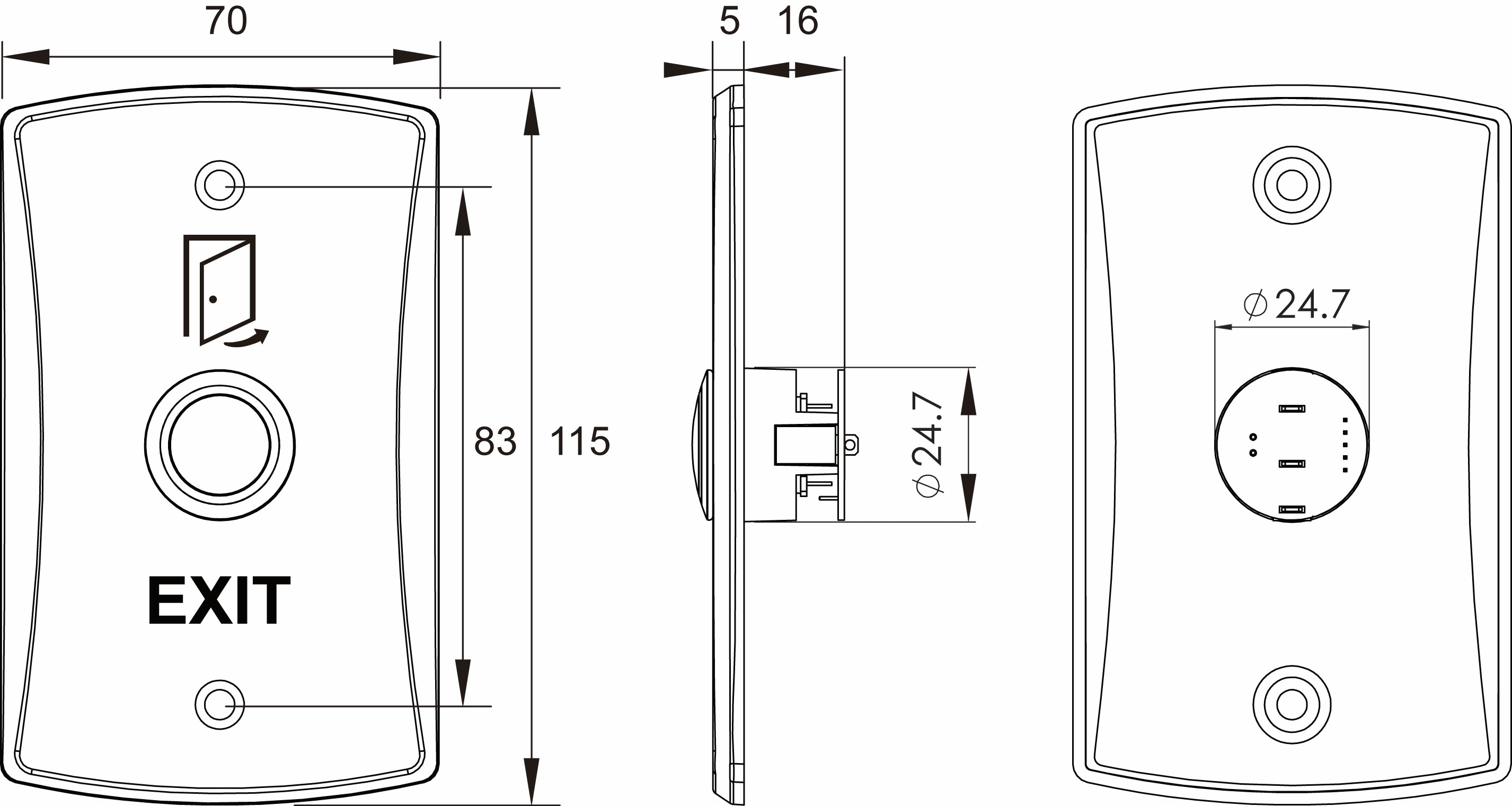

Dimension: mm

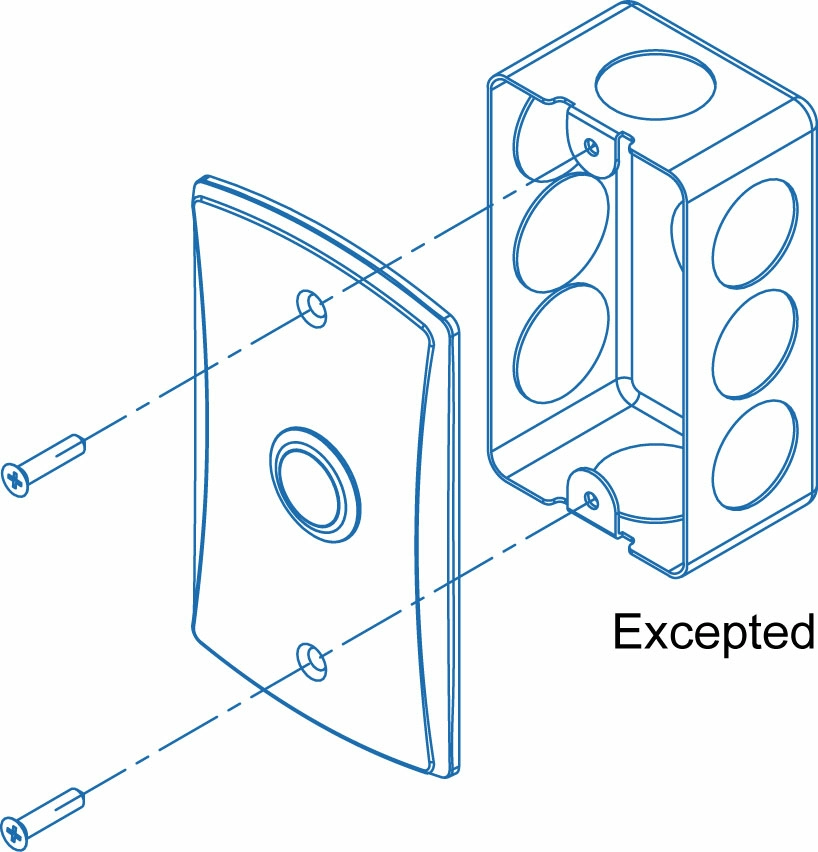

How to assembly
We reserve the right to change the specification without prior notice or obligation!
