30MM Mini Flush-Mount RFID Reader

30MM Mini Flush-Mount RFID reader30MM Mini Flush-Mount RFID reader30MM Mini Flush-Mount RFID reader

Model number： PP-30

Inquiry
Quantity
    Share

    Features

    • Mini Flush-Mount RFID reader
    • Support 125KHz (EM / H.I.D.) & 13.56MHz(Mifare / DESFire / FeliCa / ICODE-2(Optional))

    30MM Mini Flush-Mount RFID Reader


    Specification

    Model No.PP-30NPP-30HPP-30M0
    Frequency125KHz ASK125KHz FSK13.56MHz
    CompatibilityISO18000-2 EM4001, 4100, 4102, TEMIC 5567H.I.D.ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ICODE-2(Optional)
    Power VoltageDC9-12V
    Output Format/
    Interface    		Wiegand / ABA / UART / RS-232
    IP Rating IP54
    Dimesions(LXWXD)MMDiameter39.7x30.2

    Dimension: Unit(mm)

    30MM Mini Flush-Mount RFID Reader

    Application field

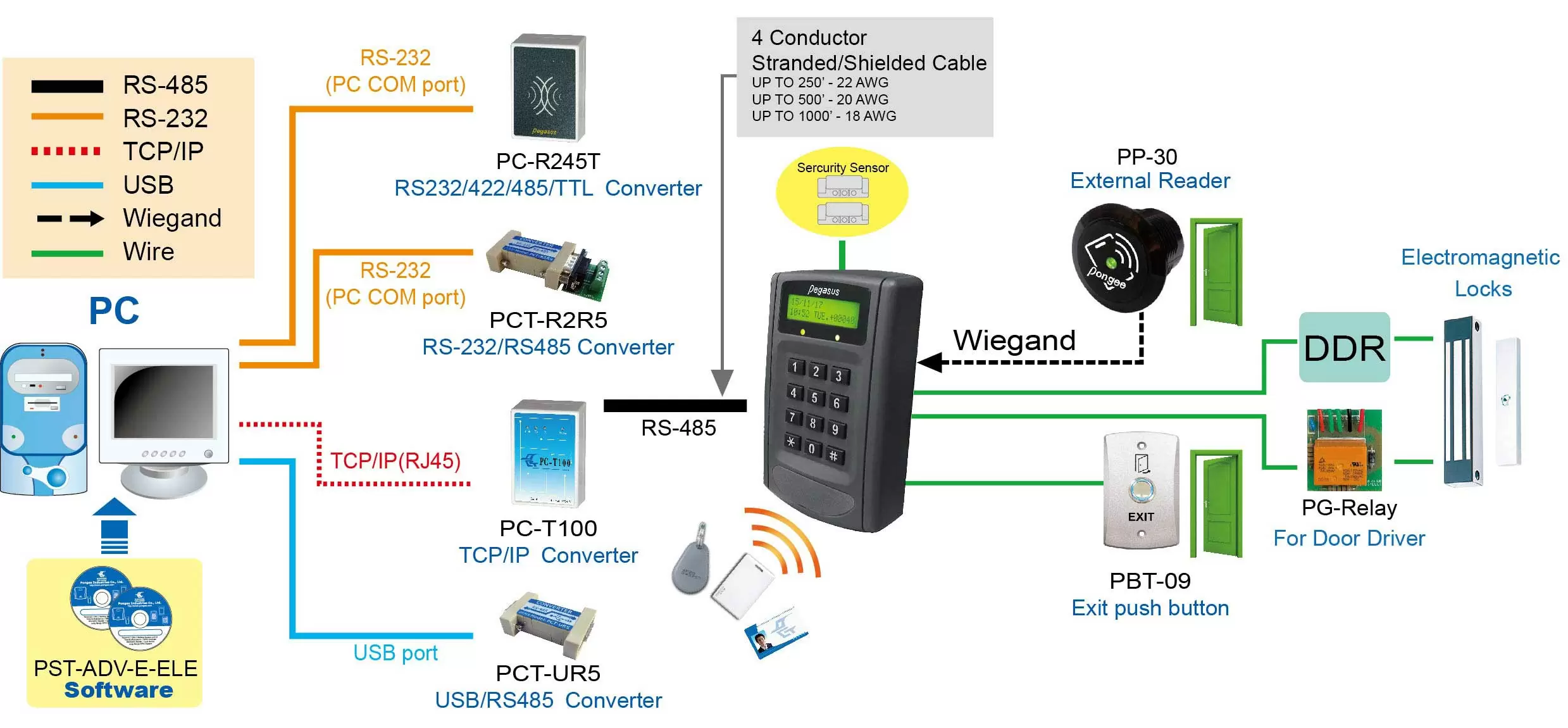

    RFID Reader-Access control systemRFID Reader-Mailbox management systemRFID Reader-Intercom system
    Access control systemMailbox management systemIntercom system
    RFID Reader-Lift access control systemRFID Reader-Charging stationRFID Reader-HMI、PLC
    Lift access control systemCharging stationHMI、PLC
    RFID Reader-Production controlRFID Reader-Vehicle rental systemRFID Reader-Kiosk/POS System
    Production controlVehicle rental systemKiosk/POS System
    RFID Reader-Membership SystemRFID Reader-Library automation
    Membership SystemLibrary automation

    Ordering information

    PP-30/M8W2613.56MHz Mifare Proximity reader,Pegasus Key,Wiegand 26 bits
    PP-30/M8T13.56MHz Mifare Proximity reader,Pegasus Key,UART
    PP-30/M1W2613.56MHz Mifare Proximity reader,Customized proprietary key,Wiegand 26 bits
    PP-30/M1T13.56MHz Mifare Proximity reader,Customized proprietary key,UART
    PP-30/M0W2613.56MHz Mifare Proximity reader,Reading Mifare UID,Wiegand 26 bits
    PP-30/M0W3413.56MHz Mifare Proximity reader,Reading Mifare UID,Wiegand 34 bits
    PP-30/M0T13.56MHz Mifare Proximity reader,Reading Mifare UID,UART
    PP-30/FW2613.56MHz Felica & Mifare Proximity reader,Wiegand 26 bits
    PP-30/FW3413.56MHz Felica & Mifare Proximity reader,Wiegand 34 bits
    PP-30/FT13.56MHz Felica & Mifare Proximity reader,UART
    PP-30NW26125KHz ASK EM Proximity reader, Wiegand 26 bits
    PP-30NW34125KHz ASK EM Proximity reader, Wiegand 34 bits
    PP-30NW40125KHz ASK EM Proximity reader, Wiegand 40 bits
    PP-30NT125KHz ASK EM Proximity reader, UART
    PP-30NR2125KHz ASK EM Proximity reader, RS-232
    PP-30NA125KHz ASK EM Proximity reader, ABA
    PP-30HW26125KHz FSK Proximity reader, Wiegand 26 bits
    PP-30HW34125KHz FSK Proximity reader, Wiegand 34 bits
    PP-30HW40125KHz FSK Proximity reader, Wiegand 40 bits
    PP-30HT125KHz FSK Proximity reader, UART
    PP-30HR2125KHz FSK Proximity reader, RS-232
    PP-30HA125KHz FSK Proximity reader, ABA


    ※ Other customer request specifications are welcomed.

    Mifare is a registered trademark of NXP B.V.
    Mifare DESFire is a registered trademark of NXP B.V.
    FeliCa is a trademark of Sony Corporation.

    Specifications subject to change without notice for further modification.

    proimages/declaration-from-Pongee-Taiwan.jpg

    Download

    #NameUpload DateDescriptionDownload
    1
    PP-30
    2024-11-11
    30MMMini Flush-Mount RFID Reader Catalog
      PP-30
